IronRidge offers two “full stack” flush mount systems for pitched roof applications: the XR System, and the QRail system.
Each includes clamps, rails, and an array of attachments that will enable installers to securely mount arrays on composition shingle, tile, slate, and shaker shingle roofs.
Our components have been tested to the limit and proven in extreme environments, including Florida’s high-velocity hurricane zones.
This rigorous approach has led to unique structural features, such as curved rails and reinforced flashings, and is also why our products are fully certified, code compliant and backed by a 25-year warranty.
We respect the roof.
Pitched Roof System Components
| Image | Name | Description | Product Type | Product Line |
|---|---|---|---|---|
|
XR Rail® Family | XR Rails’ unique curved profile increases structural strength and spanning capability, meaning fewer roof penetrations and more cost-effective designs. | Racking | IronRidge |
|
BOSS® Bonded Structural Splice | The BOSS™ provides a strong, bonded connection for XR Rails. No assembly, tools, or hardware required. | Racking | IronRidge |
|

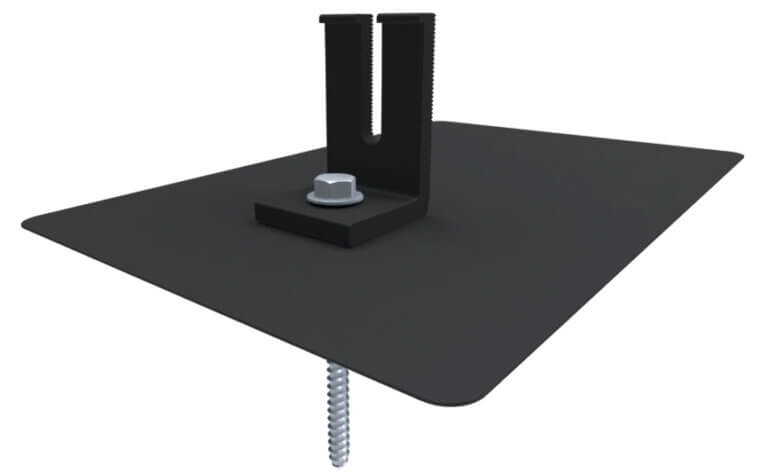

FlashVue® | Optimized flashing design features a large viewport, for easy alignment with the pilot hole. The GripCap also stays snug in place. | Attachment | IronRidge |
|

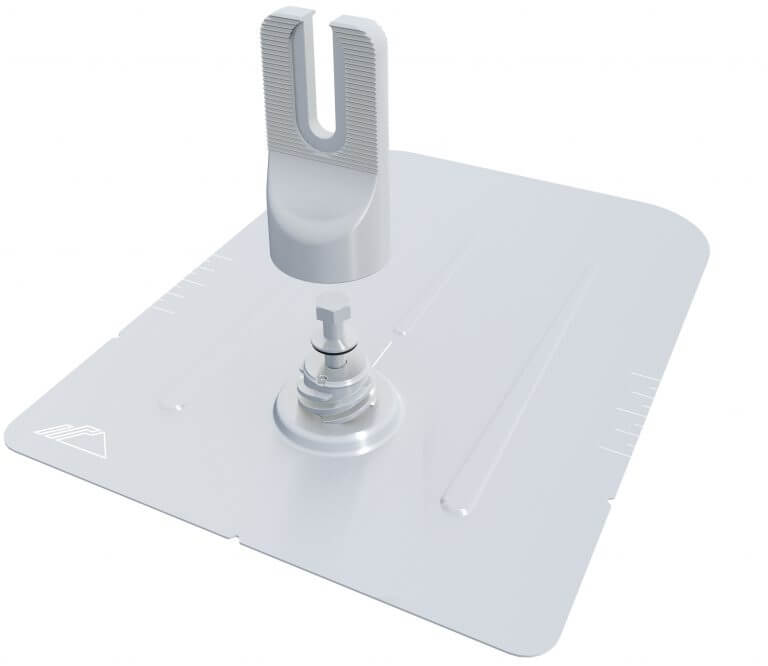

FlashFoot2® | Flash and mount XR Rails on asphalt comp shingle roofs with superior waterproofing. The twist-on cap eases installation. | Attachment | IronRidge |
|
L-Mount® | The L-Mount is designed for cost-effective, one-bolt installation onto existing composition/asphalt shingle roofs. | Attachment | QuickMount® |
|
Lynx™ Metal Roof Attachment | Lynx™ Metal Roof Attachment Connect with ConfidenceQuickMount® has always been known for high-quality solar attachments. Now expanding that portfolio onto metal roofs, Lynx™ is a robust, non-penetrating clamp for attaching... | Attachment | QuickMount® |
|

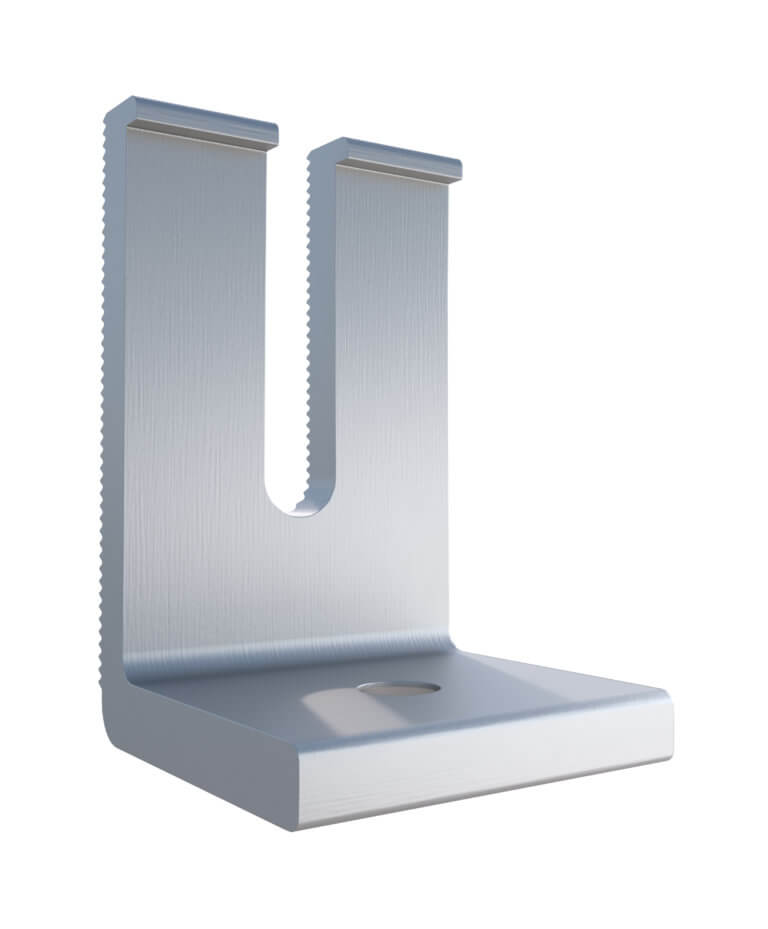

IronRidge® Slotted L-Foot | IronRidge® Slotted L-Foot Our original Slotted L-Feet are engineered for most roof mounting applications. Vertical slots allow for easily dropping in rails with pre-attached hardware and provide adjustability to account... | Attachment | IronRidge |
|
QuickMount® Open-Slotted L-Foot | QuickMount® Open-Slotted L-Foot The QuickMount® Open-Slotted L-Foot is recommended for use when attaching an L-Foot to QuickMount® attachments.The alternative IronRidge® Slotted L-Foot, used across all other IronRidge solar roof attachments,... | Attachment | QuickMount® |
|
UFO® & Stopper Sleeves | The Universal Fastening Object is a universal, single-piece mid clamp. When combined with a Stopper Sleeve, the UFO functions as an end clamp. | Hardware | IronRidge |
|

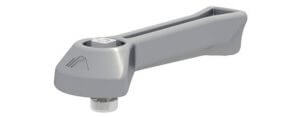

CAMO® | This tool-free, universal, invisible end clamp is designed to bond and secure while improving array aesthetics. It comes as one piece, fully assembled. | Hardware | IronRidge |
|
JayBox™ Junction Box | JayBox™ Junction Box Protect the NestJayBox™ is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings.The... | Accessory | QuickMount® |
|
QBase® Composition Mount | The QBase® Composition Mount is a strong and cost-effective method for installing solar panels during the construction of new composition/asphalt shingle roof for either a new home or a roof replacement. | Attachment | QuickMount® |
|
QBase® Metal, Shake & Slate Mount | The QBase® Metal, Shake & Slate Mount is a multi-purpose base-and-post style solar mounting system offering superior strength and waterproofing for metal shingle, shake, and slate shingle roofs. | Attachment | QuickMount® |
|
QBase Universal Tile Mount | The QBase Universal Tile Mount uses the QBase foundation and two spun aluminum cone flashings for installing solar panels on tile roofs with superior strength and waterproofing. | Attachment | QuickMount® |
|
Tile Replacement Mount | The Tile Replacement Mount provides a fast and easy way to install solar on tile roofs while protecting against water intrusion. | Attachment | QuickMount® |
|

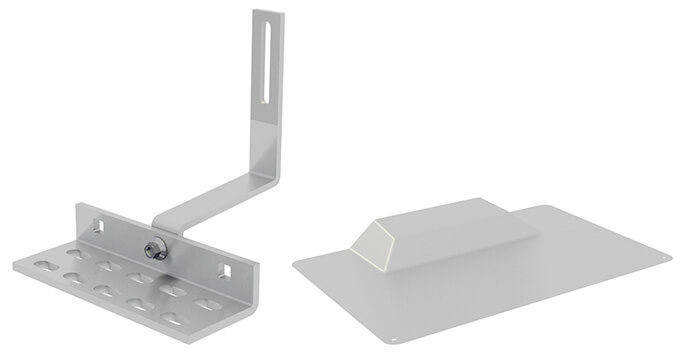

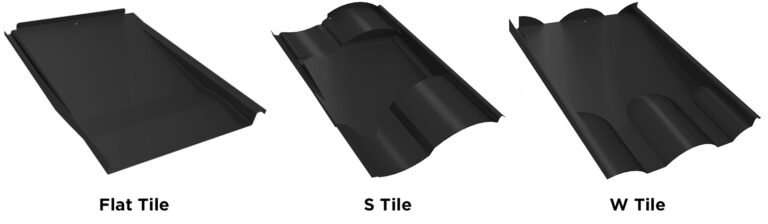

Tile Replacement Flashings | The QuickMountTile Replacement Flashing replaces a tile, so there’s no messy, time-consuming tile grinding or cutting required. Works with all standard curved and flat tile roofs, and all standard rail-based racking systems. | Attachment | QuickMount® |
|
Classic Conduit Mount | The Classic Conduit Mount lifts electrical conduit off the roof to protect wiring from overheating. These mounts use our proprietary waterproofing technology to seal the roof penetrations. | Attachment | QuickMount® |
|
Conduit Mount for Tile | Lifts electrical conduit off the roof to protect wiring from overheating and works with flat or curved tile and does not require tile cutting or grinding. | Attachment | QuickMount® |
|
Conduit Penetration Flashing | Provides a quick, easy way to install a variety of conduit sizes through composition shingle roofs while protecting the penetration against water intrusion. | Attachment | QuickMount® |
|
Tile Conduit Penetration Flashing | The QuickMount Tile Conduit Penetration Flashing provides a quick, easy way to install conduit through tile roofs while protecting against water intrusion with two seamless, all-aluminum spun cone flashings. | Attachment | QuickMount® |
|
Quick Hook® for Side Mount Rails | Quick Hook is fast and simple to install. Two height options allow for use with a variety of flat and curved tiles for mounting PV on tile. | Attachment | QuickMount® |
|
Shared Rail Composition Mount | The Shared Rail Composition Mount is designed to work with rail systems in shared-rail and modified shared-rail configurations. It features a 9 x 12-inch aluminum flashing with alignment guides and rounded corners to easily slide under shingles and speed installation on the roof. | Attachment | QuickMount® |
|

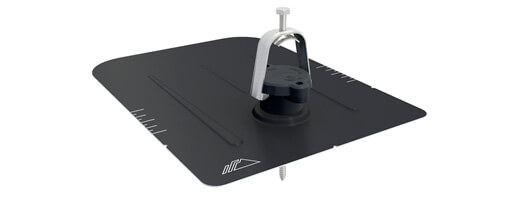

Classic Composition Mount | The QuickMount® Classic Comp uses our patented QBlock Elevated Water Seal Technology® to ensure a long, watertight life on composition/asphalt shingle roofs. | Attachment | QuickMount® |
|
Accessory Frame Bracket | The Accessory Frame Bracket offers fast, on the ground installation for mounting module level electronics directly to the module frame. It works with rail-based racking systems, ballasted, and ground-mounted systems. | Accessory | QuickMount® |
|
QBox® Junction Box | The QuickMount® QBox® is a flashed junction box with Elevated Water Seal Technology®, and provides a waterproof pass-through for conduit from the box enclosure to the attic on composition shingle roofs. | Attachment | QuickMount® |
|
E-Mount | E-Mount uses the patented QBlock Elevated Water Seal Technology® to provide superior waterproofing on composition/asphalt shingle roofs. | Attachment | QuickMount® |
|
Conduit Mount | Elevates and securely fastens conduit to the roof deck. Supports ¾” or 1” EMT conduit and other equipment such as a junction box for a sleek, versatile solution. | Attachment | IronRidge |
|

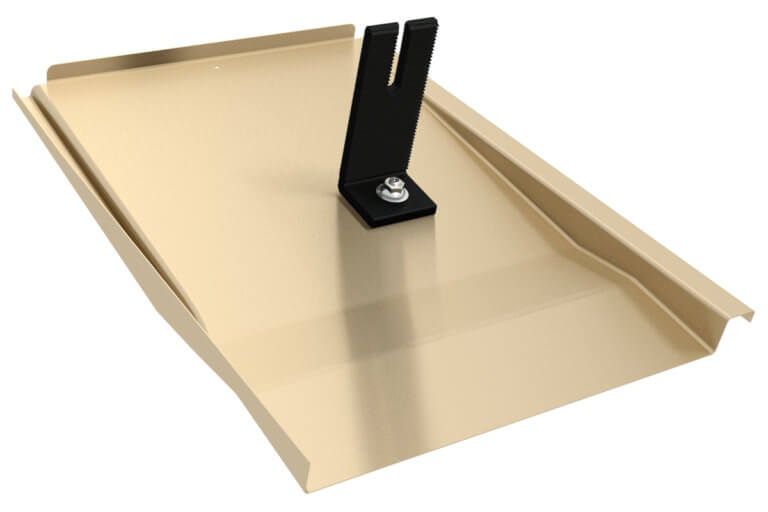

Knockout Tile | The single-lag design cuts the number of tile roof penetrations in half, and the fully-encased compression seal keeps the water down and out. | Attachment | IronRidge |
|

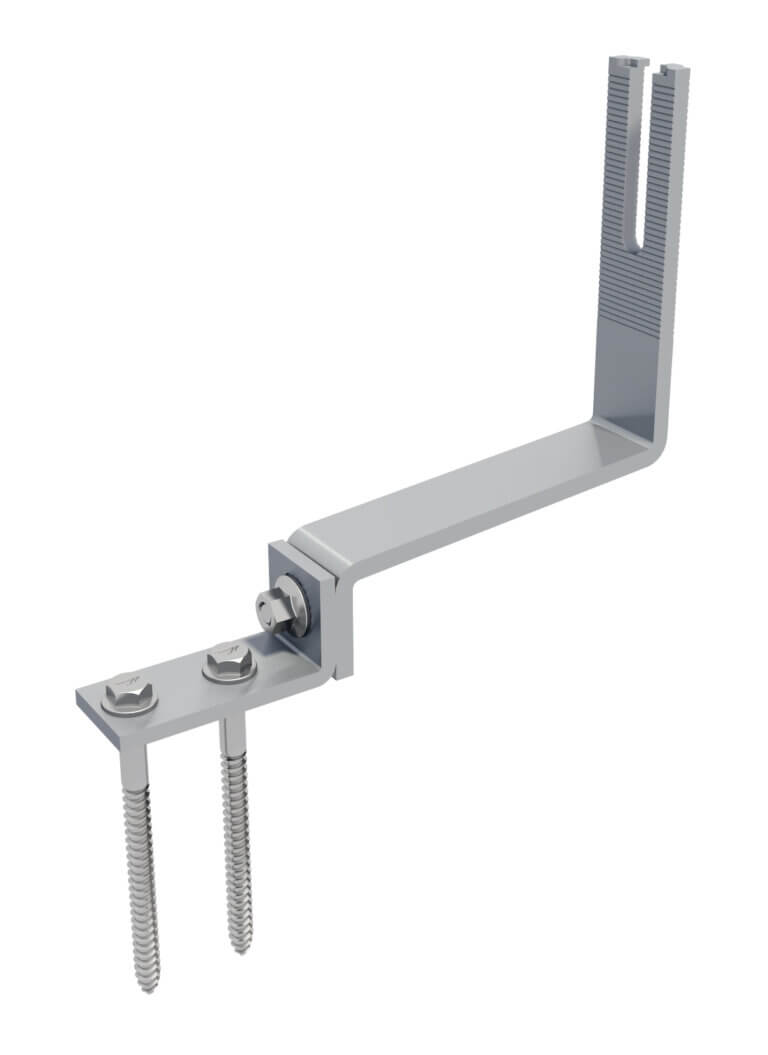

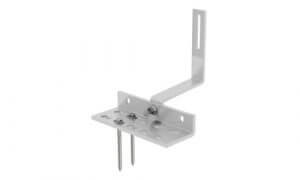

All Tile Hook & Deck Flashing | The single-lag design cuts the number of tile roof penetrations in half, and the fully-encased compression seal keeps the water down and out. | Attachment | IronRidge |
|
Classic Shake Mount | The QuickMount® Classic Shake Mount uses patented QBlock Elevated Water Seal Technology® to form the easiest, fastest, most universally code-compliant and watertight mount available for solar panel installation on cedar shake roofs. | Attachment | QuickMount® |
|
Accessories | Provide a finished look and support electrical wires. Constructed from UV-stabilized polymers for long-lasting performance: End Caps & Wire Clips. | Accessory | IronRidge |
|
Hardware | All hardware is designed for single-tool installs, low profiles, and in support of our UL 2703 listings: Grounding Lugs, T-bolts, Square-bolts and MI kits. | Hardware | IronRidge |
