Tile Replacement Flashings

The QuickMountTile Replacement Flashing for tile hooks provides a fast, simple and versatile way to install solar on tile roofs. The flashing replaces a tile, so there’s no messy, time-consuming tile grinding or cutting required. Works with all standard curved and flat tile roofs, and all standard rail-based racking systems.

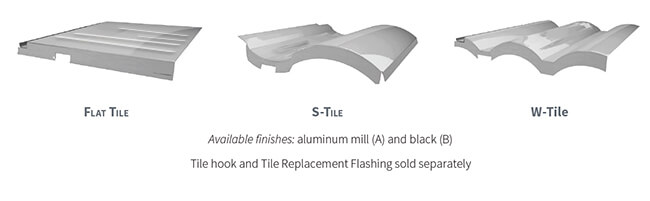

The Tile Replacement Flashing for tile hooks is fully engineering to meet code requirements and industry best practices. Works with Flat, S-shaped and W-shaped tiles. Available in aluminum mill and black finishes.

Tile Replacement Flashings

Features

  • Clean and simple: no time-consuming, messy tile grinding or cutting
  • Versatile: works with Flat, S and W-shaped tile profiles
  • Tile hook and flashing sold separately
  • Creates replacement tiles on the job
  • Meets or exceeds all roofing industry best practices
  • 100% IBC compliant
  • 25-year warranty

Resources

Installation Guide

S-Tile Flashing CAD Blocks (DWG, PDF)

W-Tile Flashing CAD Blocks (DWG, PDF)

Flat Tile Flashing CAD Blocks (DWG, PDF)

TRF Kit
Included in kitW-tile flashing, aluminum or
S-tile flashing, aluminum or
Flat tile flashing, aluminum
Flashings availableFlat, S-Tile, and W-Tile
Tools needed for installationTape measure
Aviation type tin snips
chalk or crayon
Roofer's bar or shingle ripper
Applicable roof typesFlat, S-shaped and W-shaped tiles
Available finishesAluminum mill
Black

Tile Replacement Flashing: See How It Works

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

US PATENTS

uspto

Tile Replacement Flashings for Tile Hooks
U.S. Patent Numbers: D827160, D827873, & D827874
