Classic Conduit Mount

We’ve designed these mounts to lift electrical conduit off the roof to protect wiring from overheating. These mounts use our proprietary waterproofing technology to seal the roof penetrations and we use aluminum and stainless steel parts to secure the electrical conduit for the life of the system.

Available for composition/asphalt shingle and wood shake roofs, in aluminum mill and black finishes.

Features

  • Raises array wiring off hot roof
  • Patented Elevated Water Seal Technology®
  • All-aluminum 9″ x 12″ flashing with alignment guides
  • Rounded corners to easily slide under shingles
  • Meets or exceeds roofing industry best practices
  • Works with composition and shake roofing
  • Won’t void roof manufacturer’s warranty
  • 25-year warranty
  • Stainless steel hardware (included)
  • One-bolt installation
  • No shingle cutting
  • 100% IBC compliant

Classic Conduit Mounts measure 9″ x 12″. Finishes available include aluminum mill and black (custom). Uses a standard single-hole conduit clamp for 1/2″ through 1-1/2″ conduits. Conduit clamp not included.

Resources

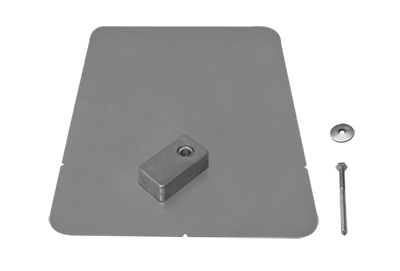

Classic Conduit Mount Kit
Included in kitAluminum mounting block (3/4" x 1-1/4" x 2-1/4") attached to .04" thick, 9" x 12" aluminum flashing using weld-free bond
1/4" by 2-1/2" lag bolt
Stainless/EPDM sealing washer, 1" x 5/16"
Flashing size9" x 12"
Tools needed for installationTape measure
Roofer's bar/shingle ripper
Stud finder
Caulking gun
Sealant compatible with roofing materials
Drill with 3/16" bit
Drill or impact gun with 7/16" deep socket
Applicable materialsStandard and high-definition composition/asphalt shingle roofs with 5" to 5-1/2" courses; clamps for conduit measuring 1/2" to 1-1/2" in diameter (clamps not included)
Available finishesAluminum mill
Black

Installing the Classic Conduit Mount

The QBlock Elevated Water Seal Technology®

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

US PATENTS

uspto

Classic Conduit Mount
U.S. Patent Numbers: US 7762027, US 7895808, & US 7905064
