BX Ballasted for Flat Roofs

Uniquely shaped for flat roofs.

IronRidge BX delivers superior power density and design flexibility to flat roof solar arrays.

Made of a glass reinforced composite, the BX Chassis is engineered for extreme structural loading, yet is also shaped to be roof-friendly and easy to install.

BX Array

Glass-Reinforced Composite

Corrosion-free and engineered for long-term structural performance.

UL 2703 Listed System

Entire system and components meet newest effective UL 2703 standard.

Commercial Services

Engineering support to optimize system design.

Class A Fire Rating

Certified to maintain the fire resistance rating of the existing roof.

25-Year Warranty

Products guaranteed to be free of impairing defects.

Design Assistant

Online software makes it simple to create, share, and price projects.

5-Degree Chassis

5° CHASSIS

Ballasted mounting for 5-degree tilt angles.

  • Max load spreading design
  • Fully encloses ballast
  • 360-degree drainage

Learn More

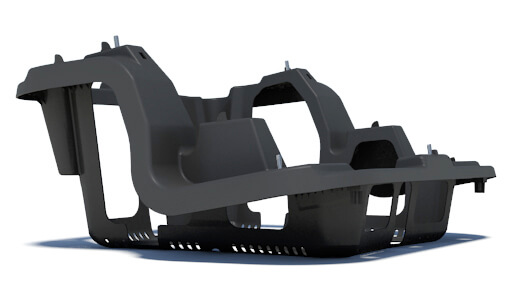

10-Degree Chassis

10° CHASSIS

Ballasted mounting for 10-degree tilt angles.

  • Max load spreading design
  • Fully encloses ballast
  • 360-degree drainage

Learn More

Top Clamps

TOP CLAMPS

Combines with Bottom Clamp for top-bottom module grip.

  • Secures above module
  • One-tool attachment
  • Mill aluminum 600 series
Bottom Clamps

BOTTOM CLAMPS

Combines with Top Clamp to up structural connection.

  • Secures below module
  • One-tool attachment
  • Mill aluminum 600 series
MLPE Kit

MLPE MOUNTING HARDWARE

Optional mounting hardware for MLPE devices.

  • Cap screw and cage nut
  • 5/16″ socket install
  • Stainless steel 300 series
Grounding Lug

PV MODULE GROUNDING LUG

Connect arrays to equipment ground.

  • Low profile
  • Mounts to module frame
  • One per continuous array
8" Bonding Jumper

8″ MODULE BONDING JUMPER

Bond adjacent modules in the array.

  • Press-on installation
  • Tin-plate copper wire
  • Factory crimped connection
38" Bonding Jumper

38″ ROW BONDING JUMPER

Complete row-to-row bonding in the array.

  • Press-on installation
  • Tin-plate copper wire
  • Factory crimped connection
Cable Tie

CABLE TIE

Complete wire management with weatherproof ties.

  • UV stabilized polyamide
  • 12″ length, bundle of 100
  • Black finish
Edge Clip Cable Tie

EDGE CLIP CABLE TIE

Manage wires underneath module and Chassis flange.

  • Clips to module and Chassis
  • UV stabilized polyamide
  • Black finish
String Inverter Mounting Kit

STRING INVERTER MOUNTING KIT

Create mounting platform for inverters.

  • Chassis, XR10 Rail, and hardware
  • Supports up to 4′ inverter base
  • Raises inverter off the deck
Flat Roof Attachment Kit

FLAT ROOF ATTACHMENT KIT

Add anchors to the ballasted system.

  • Includes hardware
  • For ballast-attached hybrids
  • Uses locally-sourced strut

Use with the Flat Roof Attachment

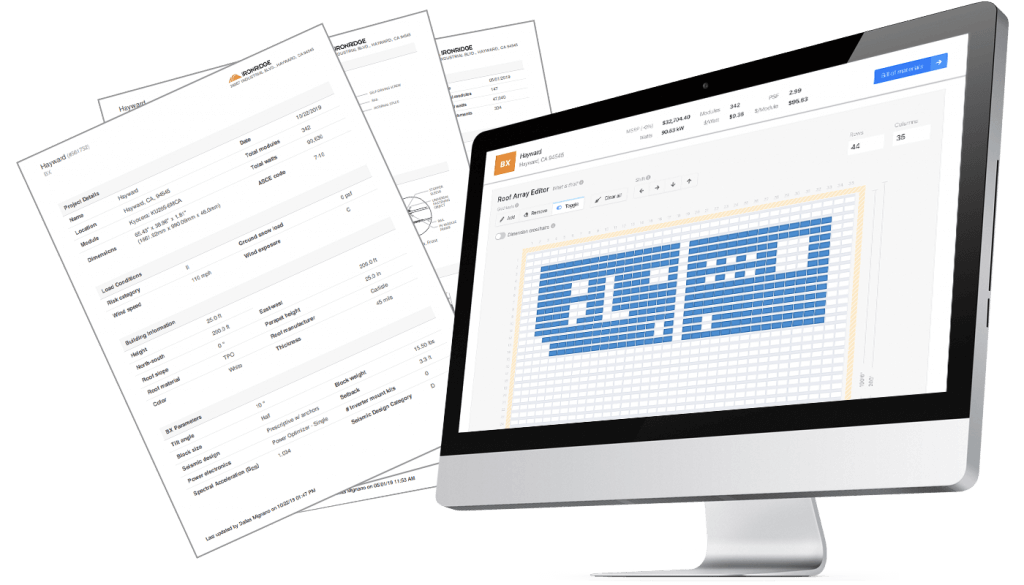

Ballast Design Assistant

  • Comprehensive reaction forces
  • Turbo-charged calculation engine
  • Roof material & attachment selector
  • Auto-generated documents package
BX Ballasted Design Assistant

BX Ballasted Documentation

On-Demand Training

Installing BX Ballasted on Flat Roofs
