MADE FOR FLORIDA.
Strong solar. Made for Florida.
IronRidge® is the first solar mounting to receive Florida Product Approval. That’s because strength is the key focus of every component we design.
Approved Solar Racking in Florida & Hurricane Zones
We are always committed to safe solar, especially in extreme environments. Our pitched roof systems are Florida-approved, in accordance with ASCE 7-16 building code. IronRidge was also the first solar racking to be approved in High Velocity Hurricane Zones (HVHZ). The Florida Product Approval (FL#29843) covers Flush Mount components installed in all regions of Florida, with up to 100 PSF of wind pressure.

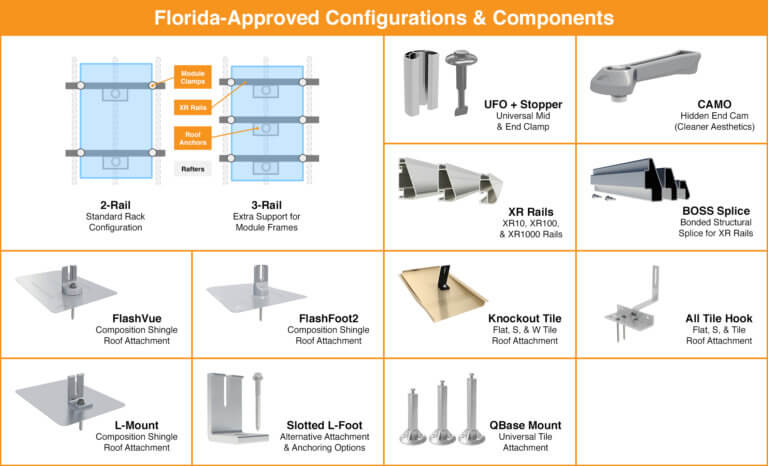

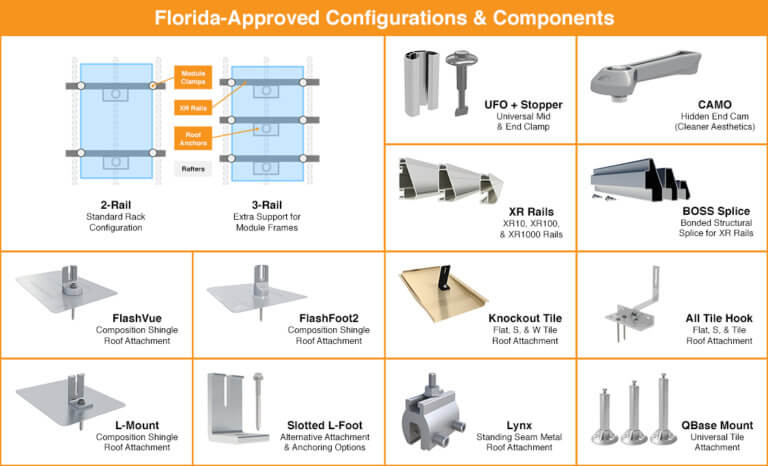

All Flush Mount System components are a part of our Florida Product Approval (FL#29843), including installation of:
- BOSS – Bonded Structural Splices
- CAMO – Hidden End Clamps
- FlashVue – Comp Roof Attachment
- FlashFoot2 – Comp Roof Attachment
- Knockout Tile – Tile Roof Attachment
- L-Mount – Comp Roof Attachment
- QBase – Universal Tile Attachment
- Slotted L-Foot – Alternative Attachments
- UFO – Universal Mid & End Clamps
- XR Rails – Racking Platform
The rigorous evaluation process for Florida Product Approval includes testing for resistance to high wind forces (TAS 202) and wind-driven rain [TAS 100(A)]. There is ongoing auditing of quality assurance programs as well. The approval also lists allowable rail spans for installating array configurations using either XR10, XR100, or XR1000 mounting rails and various IronRidge roof attachments.

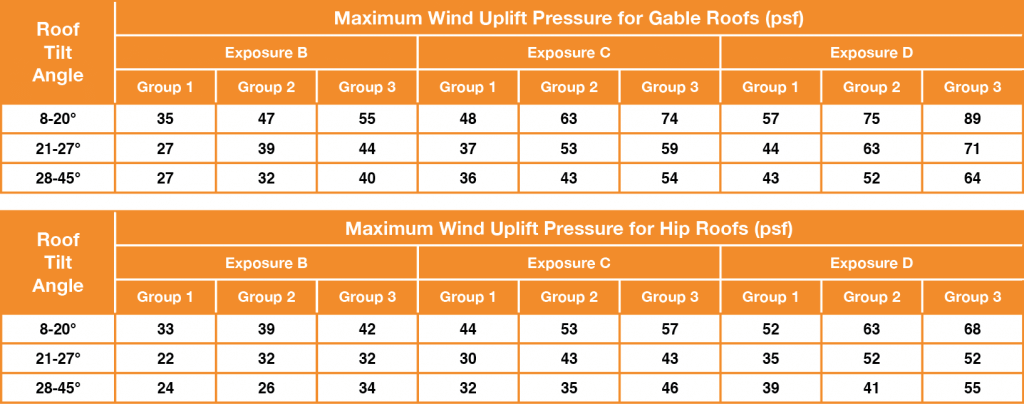

Maximum Wind Uplift Pressures
The following tables were prepared by IronRidge to provide a quick reference for the maximum wind uplift pressures on gable and hip roofs at different tilt angles. Other system documentation can be found on our Pitched Roof Resources page.

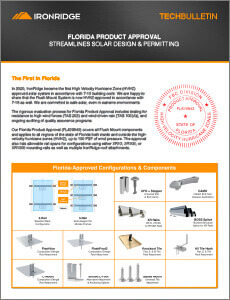

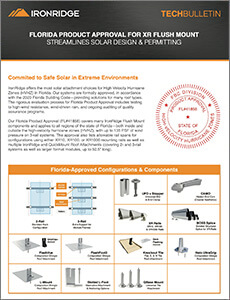

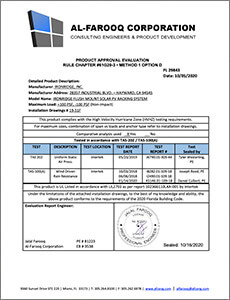

For more submitting official documents, see the Installation Instructions, Evaluation Report, and Florida Approval Pressure Tables.
We have partnered with many solar and electrical distributors across the United States. They are great resources for installers.
The map to the right highlights most of our partners that locally stock IronRidge® in the Florida area. However, there are many others that will drop-ship components to a Florida address.
For a full list of distributors, including international partners, visit our Find a Distributor page. This list is also available on our Design Assistant tool, which can send project BOMs to a nearby distributor for quoting.
Distribution Account Manager, Southeast
Inside Sales Manager,
Northeast & Southeast
Does this approval work with any solar module?
Every module has its own tested capacity for resisting wind pressure. Check the module manufacturer’s cut sheet or manual for load rating. A third rail may be required to increase the module load rating to meet the uplift pressure.
Where can I find the documentation?
IronRidge® Florida Product Approval (FL#29843) is available on the IronRidge® website or through the FBC’s approved products database: https://www.floridabuilding.org/pr/pr_app_lst.aspx
Do I still need an engineer to stamp my project?
This approval covers structural engineering of solar racking and should eliminate the need for project-specific engineering. Confirm with your jurisdiction any local requirements.
Does this apply to Tilt or Ground Mount systems?
This approval only applies to the IronRidge® Flush Mount system on roof pitches 2:12 to 12:12 (9.5° to 45°).
Does this apply to other hurricane-prone regions, such as Miami-Dade and Broward Counties?

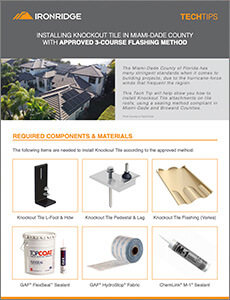

Florida’s building code and testing standards are often used or cited in other such regions, but official approval depends on the local Authority Having Jurisdiction. See our Miami-Dade Tech Tip to learn how to install Knockout Tile in these regions, with an approved 3-course flashing method.
