QBase® Composition Mount

The QBase® Composition Mount is a strong and cost-effective method for installing solar panels during the construction of new composition/asphalt shingle roof for either a new home or a roof replacement. The base-and-post mount is specifically designed to fit into the workflow between the trades to make solar panel installation smooth and efficient.

The QBase® Composition Mount also works with a variety of metal shingle roof types, such as interlocking metal shingles and stone coated steel roofs. The base-and-post mount works with all standard rail-based racking systems and are fully engineered to meet code requirements and industry best practices.

Available in aluminum mill finish.

  • Download instructions for installing on a metal shingle roofs.
  • Download calculator to determine which product to use with your metal shingle roof type (Excel).

Features

  • Flashing holds firm against wind-driven rain
  • All exposed hardware is 18-8 stainless steel
  • Meets or exceeds roofing industry best practices
  • Allows up to 4 structural attachments when required
  • 3031 lbs average ultimate pullout (Douglas fir)
  • 1972 lbs. average ultimate shear
  • Flashing is made of aluminum with no welds or seams to rust or rot
  • 25-year warranty
  • All hardware included
  • 100% IBC compliant

Resources

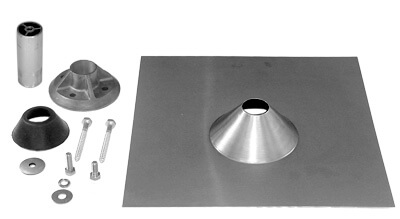

QBase Comp Mount Kit
Included in kitCast aluminum QBase
Aluminum post, 1-1/4'' x 3-1/4''
12'' x 12'' spun aluminum cone flashing
Two zinc-coated steel lag bolts, 5/16'' x 3''
EPDM post collar/counter flash
EPDM-bonded stainless steel washer, 5/16'' x 1-1/4''
Stainless steel machine bolt, 5/16'' x 1"
Stainless steel fender washer, 5/16'' x 1''
Stainless steel split lock washer, 5/16''
Grade-8 machine bolt, 5/16'' x 3/4''
Flashing size12" x 12"
Pullout/shear3031 lbs. average ultimate pullout (Douglas fir); 1972 lbs. average ultimate shear
Tools needed for installationTape measure
Roofer's bar/shingle ripper
Chalk line
Stud finder
Caulking gun
Appropriate sealant
Drill with 1/4" bit
Drill or impact gun with 1/2" deep socket
Applicable roof typesStandard and high-definition composition/asphalt shingle roofs with 5" to 5/12" courses; a variety of metal shingle roof types
Available finishesAluminum mill
Bronze anodized

Quick Install: QBase Composition Mount

Full Install: QBase Composition Mount
