Contour® Solar Array Trim

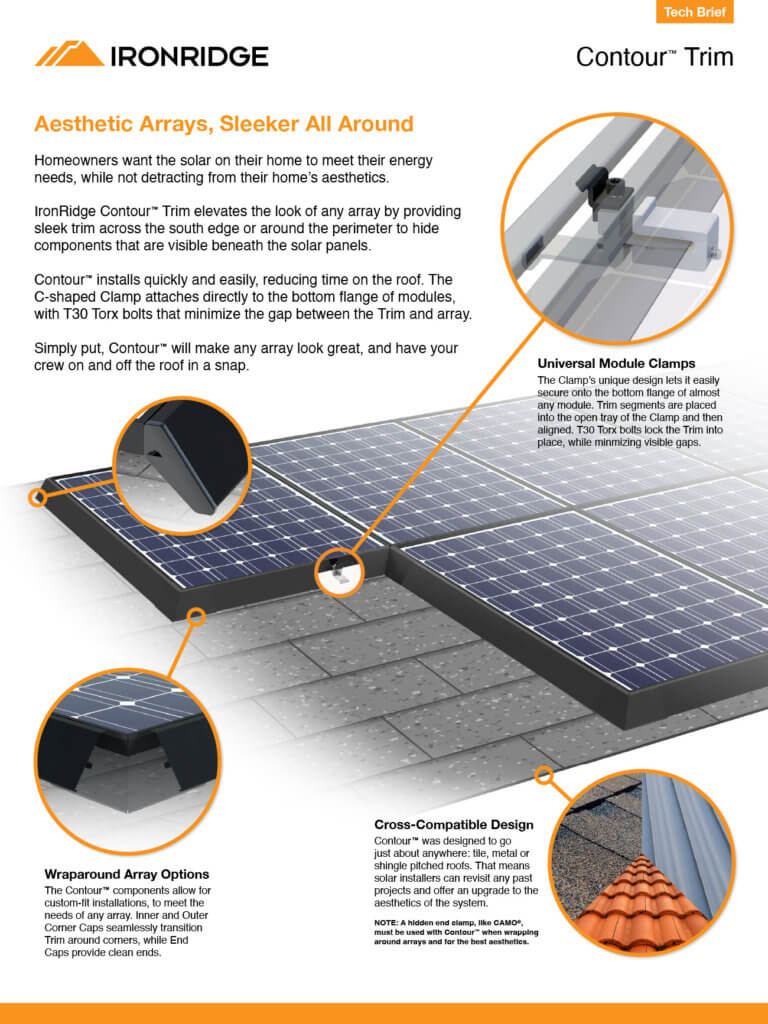

Aesthetic Arrays, Sleeker All Around
IronRidge Contour® Trim elevates the look of any solar array by providing a sleek trim (or skirt) across the south edge or around the perimeter to hide components that are visible beneath the solar panels.
Homeowners want the solar on their home to meet their energy needs, while not detracting from their home’s aesthetics. Contour® will make any array look great, and have your crew on and off the roof in a snap.Contour® Trim Components

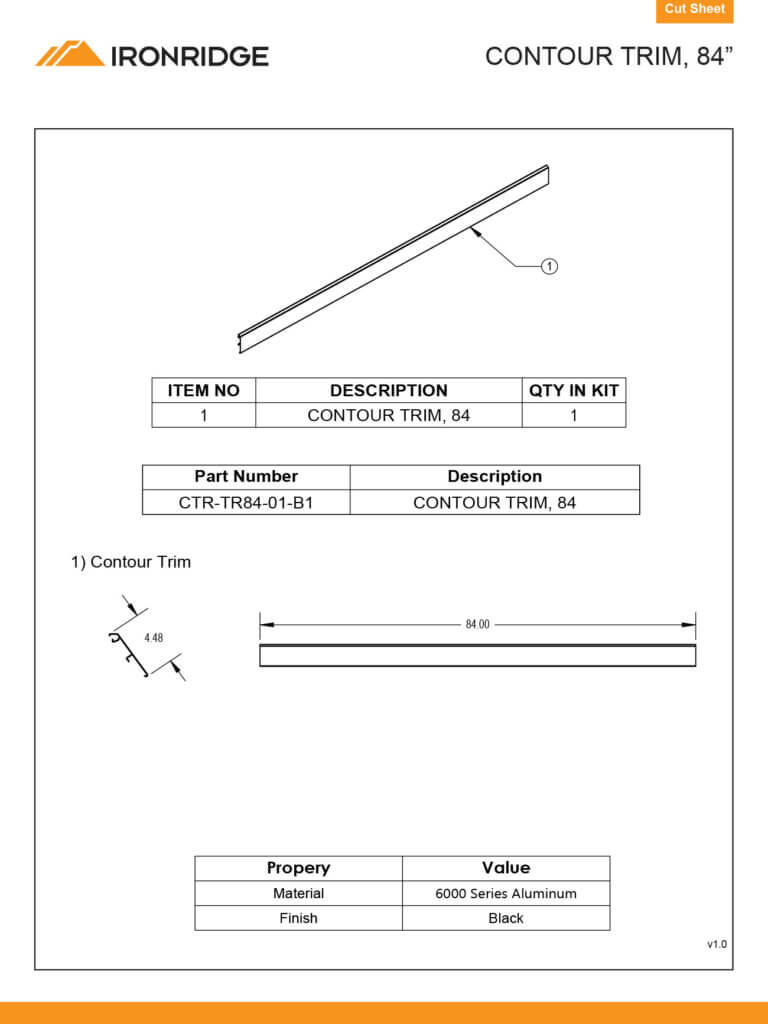

Contour® Trim
Trim comes in 84” lengths of black powder-coated aluminum. Pieces can be cut to length to fit the array edge.
Trim comes in 84” lengths of black powder-coated aluminum. Pieces can be cut to length to fit the array edge.
Contour® Splice
The Splice connects two pieces of Trim together, tool-free. Trim easily slide and can be pushed into place.
The Splice connects two pieces of Trim together, tool-free. Trim easily slide and can be pushed into place.
Contour® Clamp
The Clamp secures to bottom flange of most modules. T30 Torx bolts used to reduce visible gaps (bit included).
The Clamp secures to bottom flange of most modules. T30 Torx bolts used to reduce visible gaps (bit included).
Contour® Outer Corner Cap
The Outer Corner Cap easily slides onto Trim, without any tools, to wrap Trim around outside array corners.
The Outer Corner Cap easily slides onto Trim, without any tools, to wrap Trim around outside array corners.
Contour® Inner Corner Cap
The Inner Corner Cap easily slides onto Trim, without any tools, to wrap Trim around inside array corners.
The Inner Corner Cap easily slides onto Trim, without any tools, to wrap Trim around inside array corners.
Contour® End Caps
The Ends Caps are a pair, for the left and ride side of Trim. Equipped with a metal clip, they grip firmly in place.
The Ends Caps are a pair, for the left and ride side of Trim. Equipped with a metal clip, they grip firmly in place.

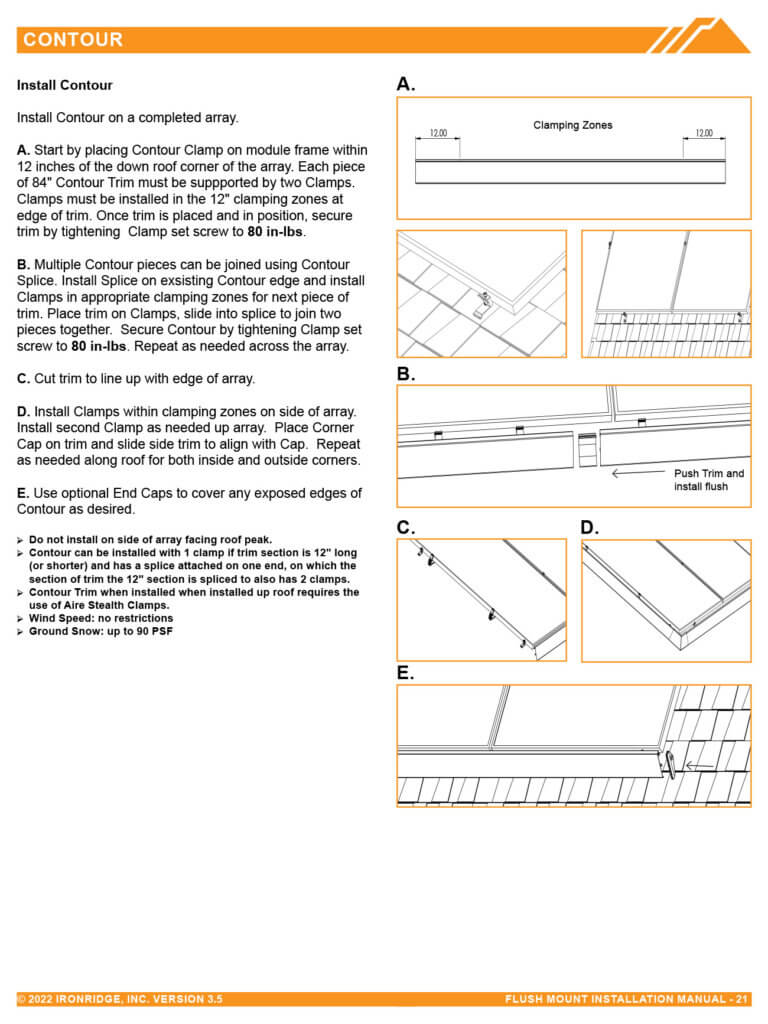

Contour® Trim Installation
Documentation
UL 2703 CERTIFICATION
All IronRidge® Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.
25-Year Warranty
IronRidge® components come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the product for the purposes for which they were designed.
