Aire™ Flush Mount System
Racking Accelerated™
The Aire™ Racking System has been carefully crafted to streamline every part of the installation process, taking out all of the tiresome hassles—so that you get off the roof and on to your next project faster than ever.
Strength Tested
All components have been evaluated for superior structural performance.
UL 2703 Listed System
Entire system and components meet the UL 2703 standard for solar racks.
Approved Cable Tray
Open rail channel conforms to NEMA VE 1, certified for holding PV cables.
Class A Fire Rating
Certified to maintain the fire resistance rating of the existing roof.
PE Certified
Pre-stamped engineering letters are available in most states.
25-Year Warranty
Products guaranteed to be free of impairing defects.
Available in Design Assistant
- Comprehensive reaction forces
- Turbo-charged calculation engine
- Roof material & attachment selector
- Auto-generated documents package
Aire™ Components

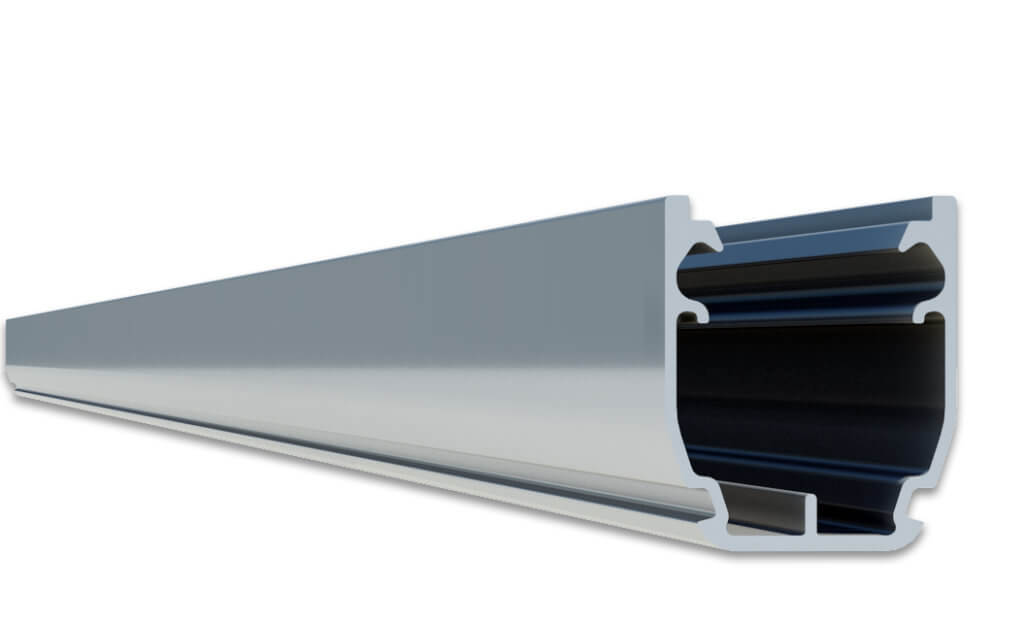

The lighter, open Aire™ rail for standard conditions.
• 6’ spanning capability
• Wire management tray
• Mill or anodized black

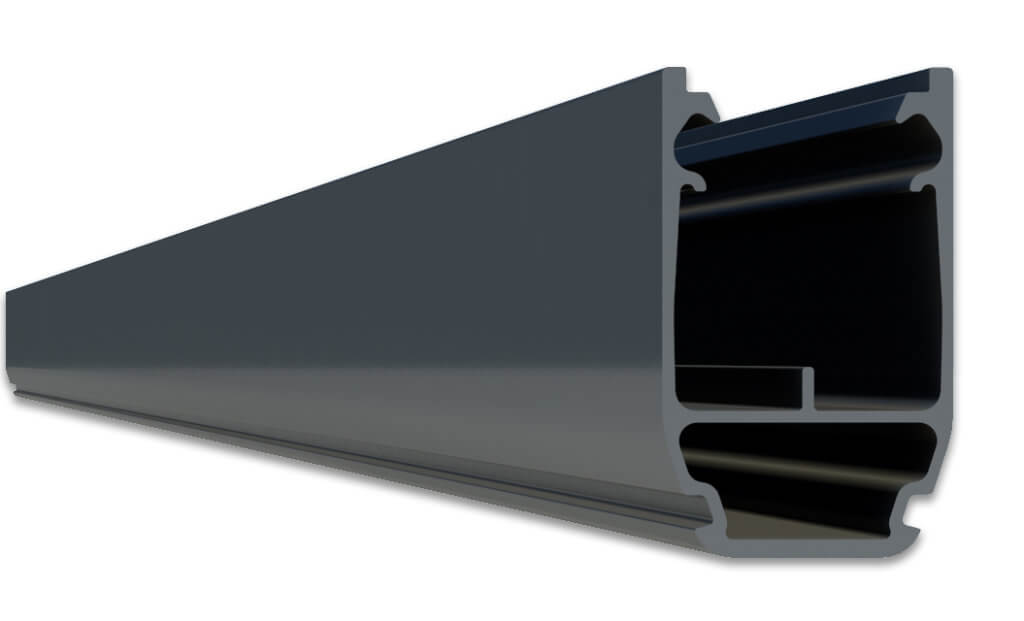

The tougher, open Aire™ rail for higher load capacity.
• 8’ spanning capability
• Wire management tray
• Mill or anodized black

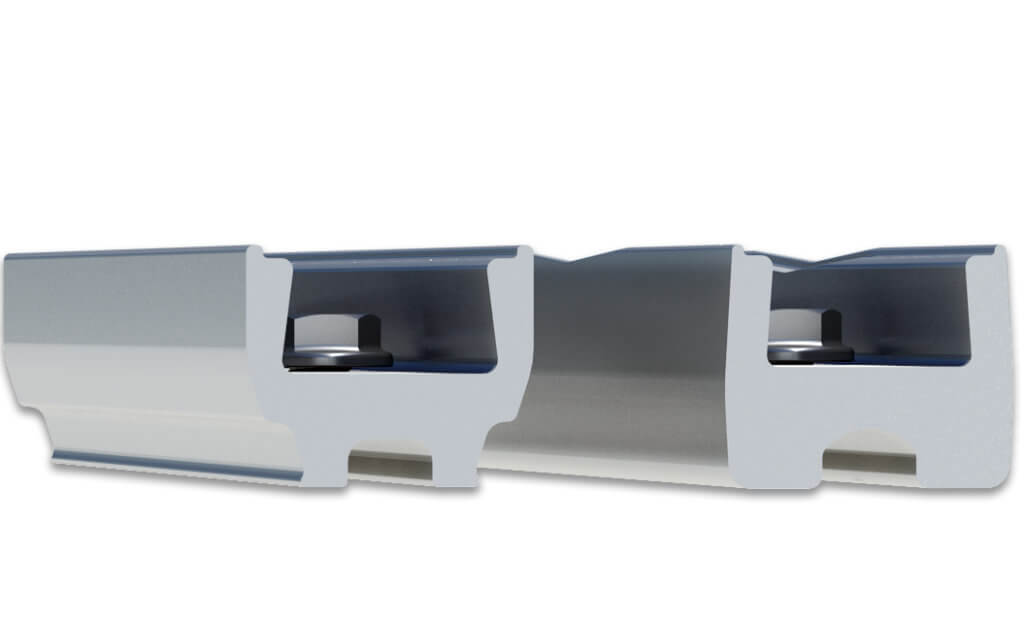

Structurally connect and bond Aire™ Rails together.
• Reinstallable, up to 5x
• Internal splice design
• No more splice rules

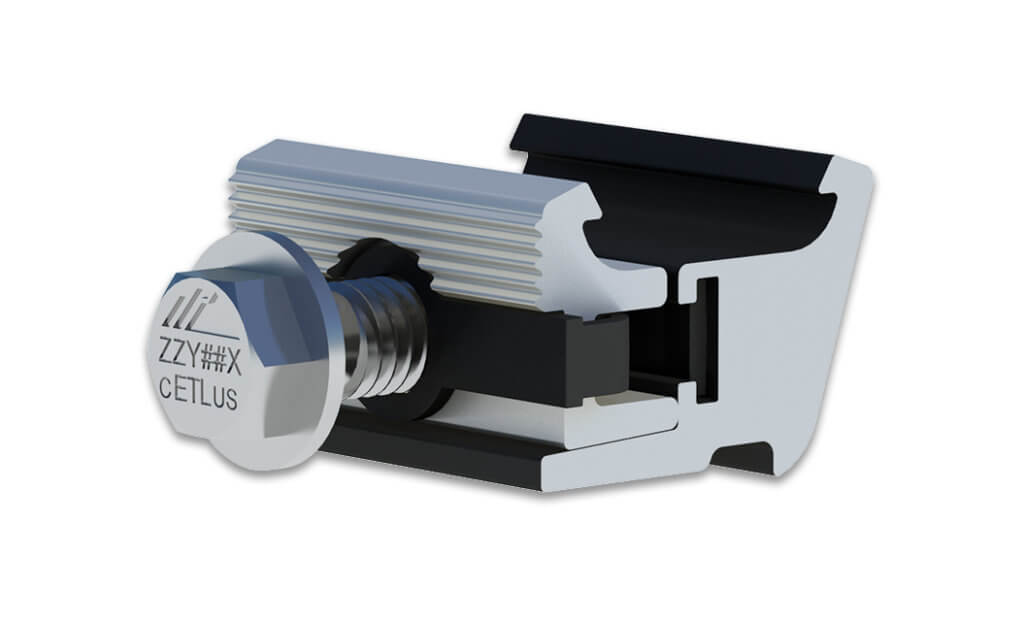

Connects Aire™ Rails to attachments with ease.
• Clicks on, slides easily
• Drops into open slots
• Anodized assembly

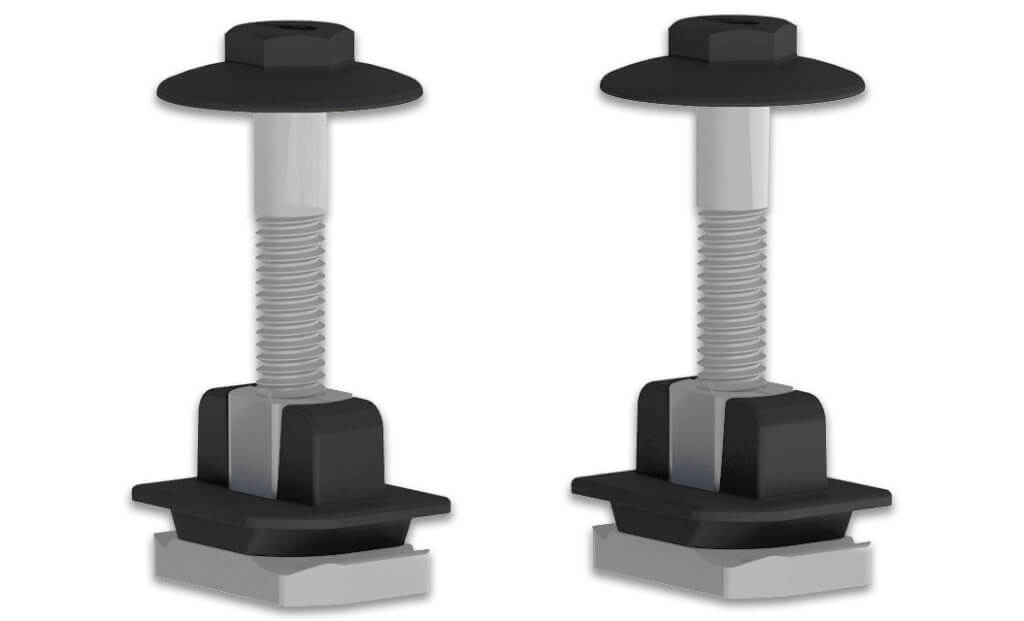

Securely bond between modules to Aire™ Rails.
• Fits 30-40mm modules
• Utilizes UFO® design
• Minimal 1/2” gap

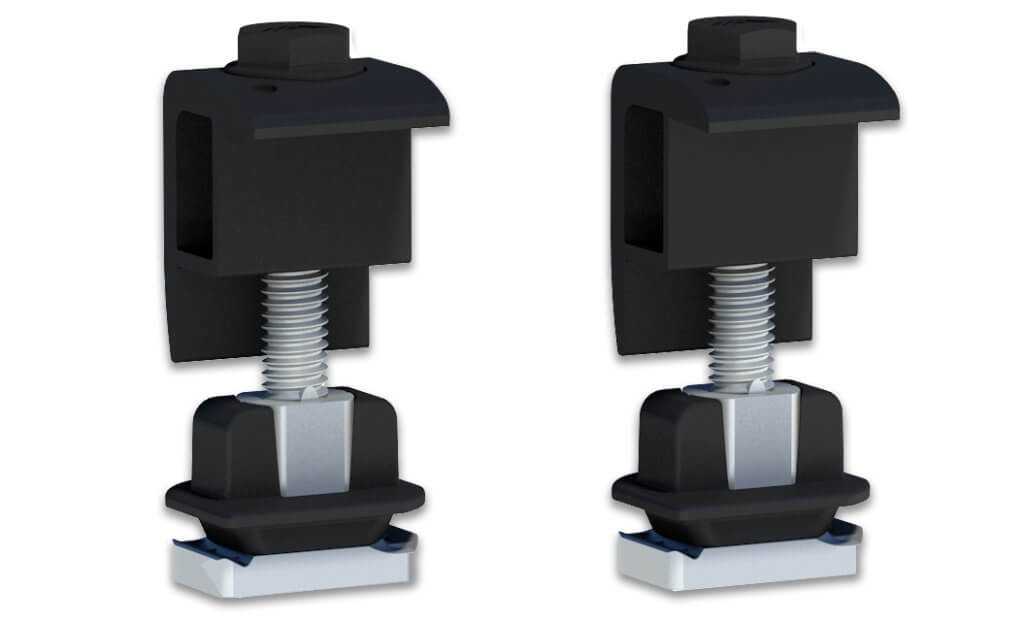

Securely bond modules to Aire™ Rails along ends.
• Fits 30-40mm modules
• Easy rail engagement
• Clean aesthetics
Securely bonds modules to rail ends, entirely hidden.
• Angled for easy install
• Robust tether leash
• Fits most modules

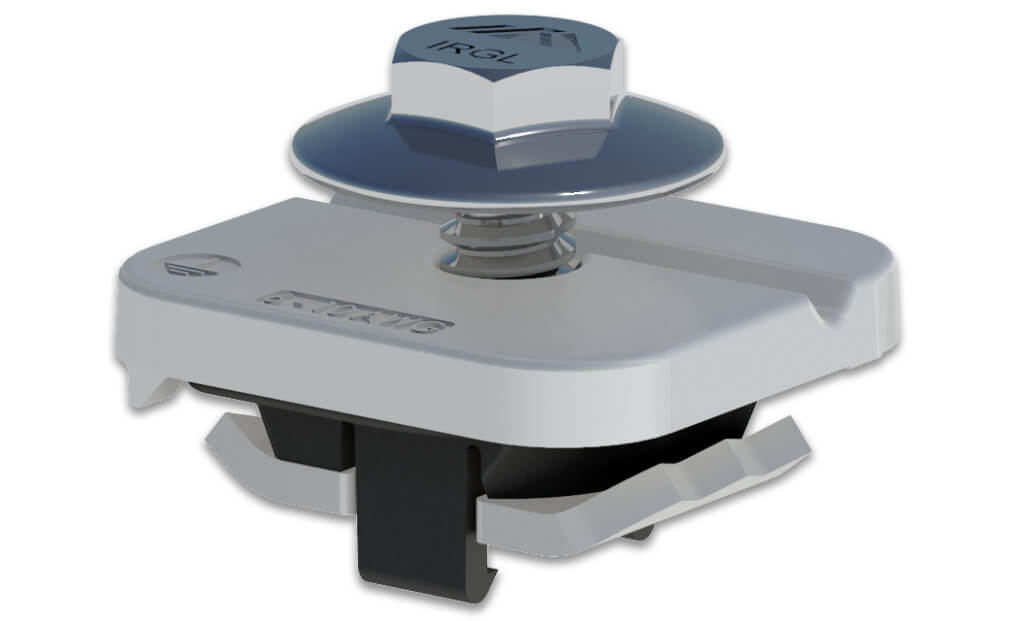

Bonds Aire™ Rails to grounding conductors.
• Simplified with single bolt
• Low-profile form factor
• Works with 10-6 AWG
Aire™ Caps
Block entry and provide a finished look to Aire™ Rails.
• Stay secure on rail ends
• Symmetrical, with drain
• Cover rough-cut ends

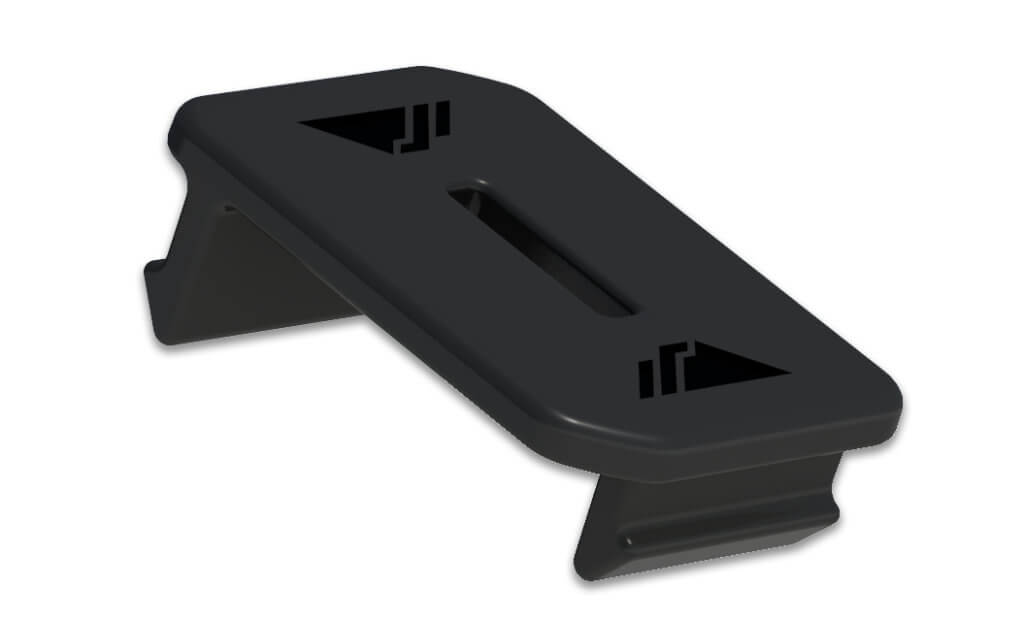

Keeps wiring contained in open Aire™ Rail channels.
• No module interference
• Simple press-in design
• Slot for easy removal

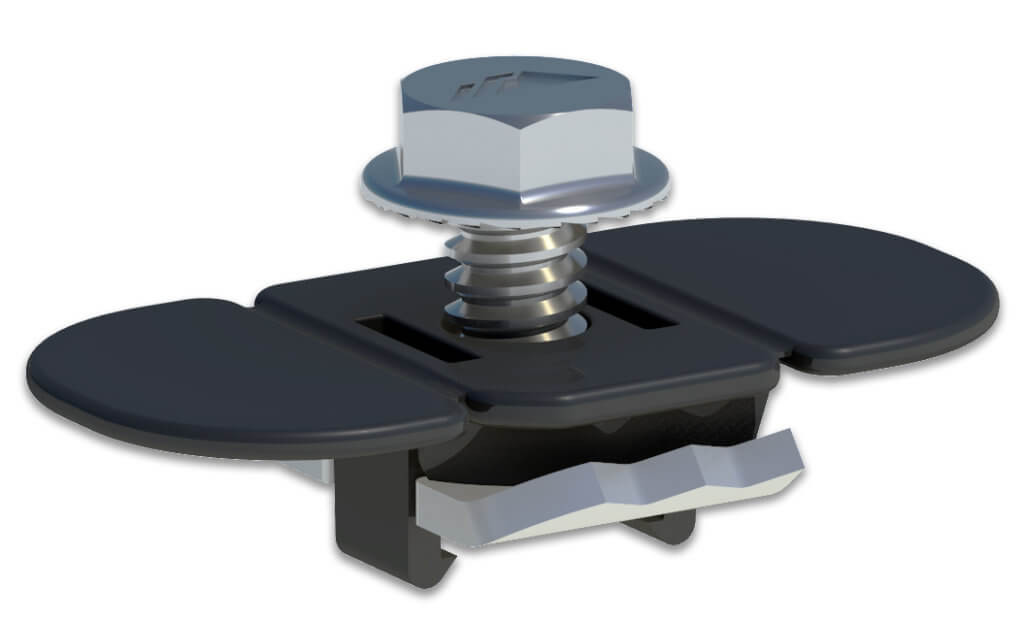

Securely bonds MLPE and accessories to Aire™ Rails.
• Glove-friendly installation
• Lays flush in rail channel
• Low profile form factor

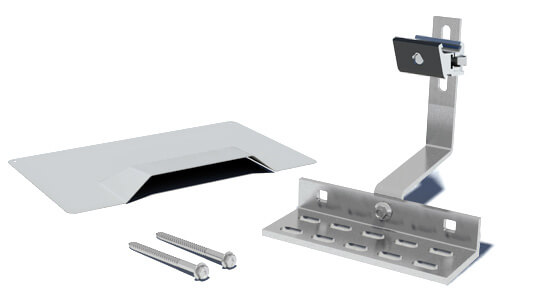

Attaches rails to tile roofs, with Aire™ Dock included.
• Works on flat, S, & W tiles
• Single-socket installation
• Optional deck flashing
System Documentation
Read Cable Tray Report: The IronRidge Aire Difference by Mayfield Renewables

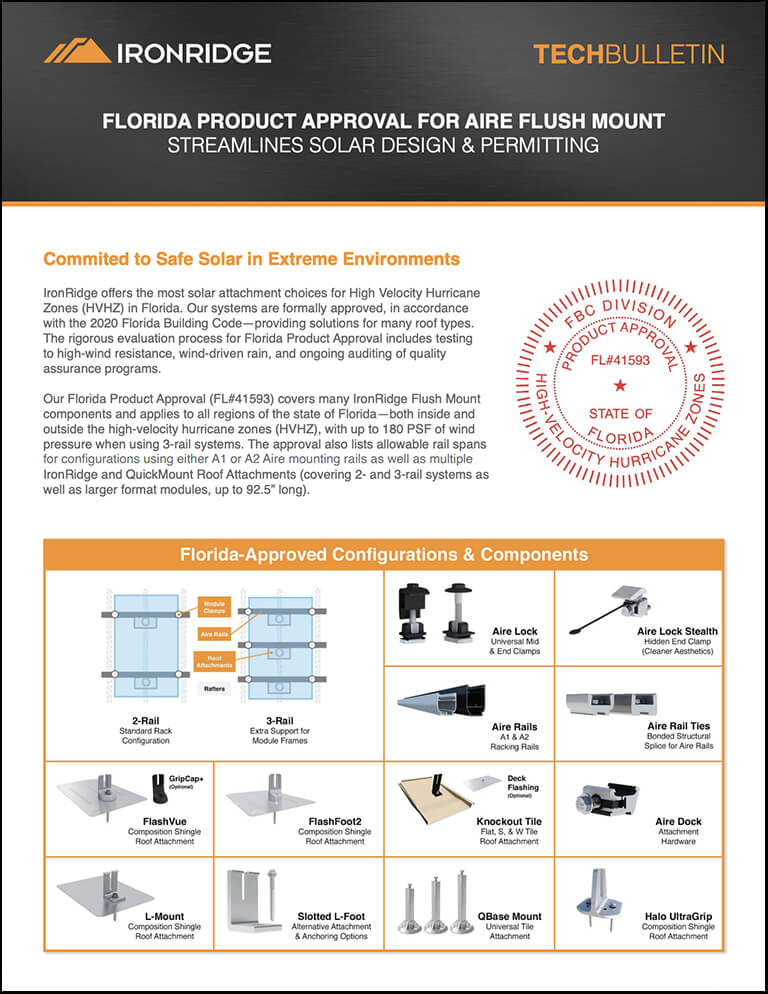

Florida Product Approval
- FlashFoot 2 – Installation Instructions
- FlashFoot 2 – Evaluation Reports
- FlashVue – Installation Instructions
- FlashVue – Evaluation Reports
- L-Mount – Installation Instructions
- L-Mount – Evaluation Reports
- QBase – Installation Instructions
- QBase – Evaluation Reports
- Knockout Tile – Installation Instructions
- Knockout Tile – Evaluation Reports
- HUG Halo UltraGrip – Installation Instructions
- HUG Halo UltraGrip – Evaluation Reports
The Florida Product Approval (FL41593-R1) covers Aire components and the above attachments installed in all regions of Florida.
