Tile Replacement Mount

The Tile Replacement Mount provides a fast and easy way to install solar on tile roofs while protecting against water intrusion. Simply remove the tile and replace it with the Tile Replacement Mount. Works with all standard curved and flat tile roofs, and all standard rail-based racking systems.

Flashed at both the deck and top levels, the Tile Replacement Mount is fully engineered to meet code requirements and industry best practices. The Tile Replacement Mount features our patented Elevated Water Seal Technology® for optimal waterproofing. Base mount sold separately from flashing and post.

For unique tile shapes, use the Universal Tile Flashing & Post with the QMTR-BM Base Mount. Its malleable 18×18-inch flashing fits over any existing tile. Download instructions.

Available in aluminum mill and black finishes.

TRM Flashings

Features

  • Versatile: Works with Flat, S-shaped and W-shaped tiles
  • Flexible: Works with all standard rail-based racking systems
  • Simple and clean: No time-consuming, messy tile grinding or cutting
  • Double flashed: Flashed at both the deck and tile levels for code compliance
  • Waterproof: Features patented QBlock® Elevated Water Seal Technology®
  • Flashings pre-treated and ready for paint, if desired
  • Post and flashing sold separately from base mount
  • Creates replacement tiles on the job
  • Meets or exceeds tile roofing best practices
  • 100% IBC compliant
  • All fasteners and hardware included
  • 25-year warranty

Resources

TRM Kit

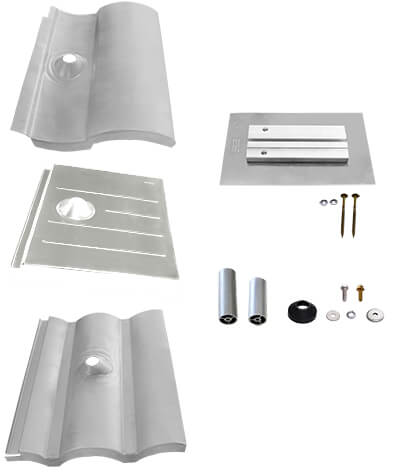

Included in base kit12" x 7½" flashing and Tile Replacement Base
EPDM-bonded stainless steel sealing washer, 5/16" x ¾" x 2
2 x steel T-30 button head structural screw, 5/16" x 4"
Included in flashing kitW-tile flashing & 4" post, aluminum or
S-tile flashing & 3¼" post, aluminum or
Flat tile flashing & 3¼ post, aluminum
1" serrated flange hex-head cap screw
EPDM-bonded stainless steel sealing washer, 5/16" x 1¼"
EPDM Counter flashing collar
5/16" x 1" fender washer
5/16" split-lock washer
1" hex-head cap screw
Flashings availableFlat, S-Tile, and W-Tile
Tools needed for installationStud Finder
Tape measure
Utility Knife
Drill with 7/8" bit
Impact gun with T-30 Torx bit
Calipers
Caulking gun
One tube of sealant compatible with roofing materials
Extra pieces of underlayment or materials for 3-course method
Hand broom
Stapler
Roofer's bar or shingle ripper
Applicable roof typesFlat, S-shaped and W-shaped tiles
Available finishesAluminum mill
Black

Tile Replacement Mount: See How It Works

Installing the Tile Replacement Mount

Waterproofing Technology for Tile Roofs

Tile Replacement Mount (New Product Webinar)

Tile Roof Waterproofing Methods

All QuickMount tile mounting products are designed to comply with the roofing best practices listed by the Tile Roofing Institute (TRI) for tile penetration flashing (MC-02). The photos below show our QBase Universal Tile Mount. The same waterproofing methods are recommended for all of our tile mounting products. For more info go to www.tileroofing.org.

Three-Course Method

If permitted by the building inspector, the three-course method may be an option for waterproofing the deck flashing. This process uses a layer of asphalt roof cement (approved by the roof manufacturer), a layer of reinforcing fabric, and another layer of asphalt roof cement to seal the flashing to the felt paper. Click here to download step-by-step instructions to use the three-course method with our tile roof products. (PDF 617K)

Felt Paper Bibbing Method

In retrofit installations where the standoff and primary flashing do not fall in a position that is close to the overlap of felt paper, an approach that is sometimes called “bibbing” can be used. When the overlapping drip edge of the felt paper ends in the tile course above the penetration, a separate piece of felt paper is positioned under the battens and overlapping felt, which then extends down to bib around the penetration and over the deck flashing.

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

US PATENTS

uspto

Tile Replacement Mounts
U.S. Patent Numbers: US 7762027, US 7895808, US 7905064, US 7861485, D827160, D827873, & D827874
