QuickMount® HUG®

The Respect Your Roof Deserves

Due to recent innovations, many asphalt shingles have bonded courses. A mount that protects without the need to pry shingles can really speed things up.

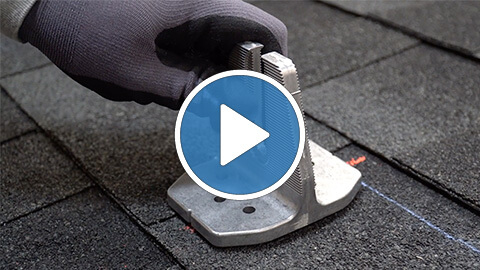

HUG®—Halo UltraGrip™—is here to respect the roof. Its Halo is a cast-aluminum barrier that encases the UltraGrip™, our industrial-grade, foam-and-mastic seal. This allows HUG® to accelerate the installation process and provide the utmost in waterproofing protection.

Solar attachments must be dependable for the lifetime of a home’s rooftop. Give your roof a HUG.®

Features & Benefits

HUG Waterproofing Layers

Multi-Tiered Waterproofing

HUG® utilizes a multi-tiered stack of components to provide revolutionary waterproofing protection. The Halo cast-aluminum, raised-perimeter foundation surrounds the UltraGrip™ base—a foam-backed mastic seal combination that prevents water intrusion by adhering and sealing with the shingle surface. HUG® also has Florida Product Approval (FL#41858.6).

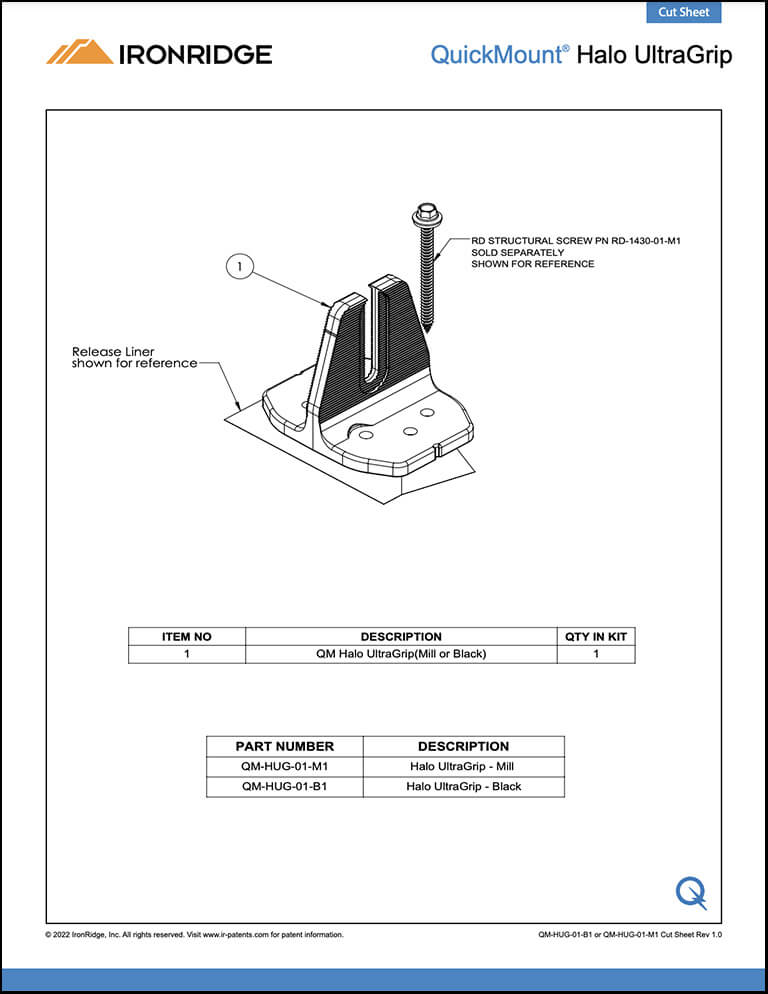

Halo UltraGrip Technology

UltraGrip™ Seal Technology

HUG® UltraGrip™ utilizes a state-of-the-art seal design that uses a unique, foam-and-mastic combination. The foam-backed adhesive provides an entirely new flashing system that conforms and adheres to every nook and cranny of composition shingles, filling gaps and shingle step-downs (up to 1/8” in height).

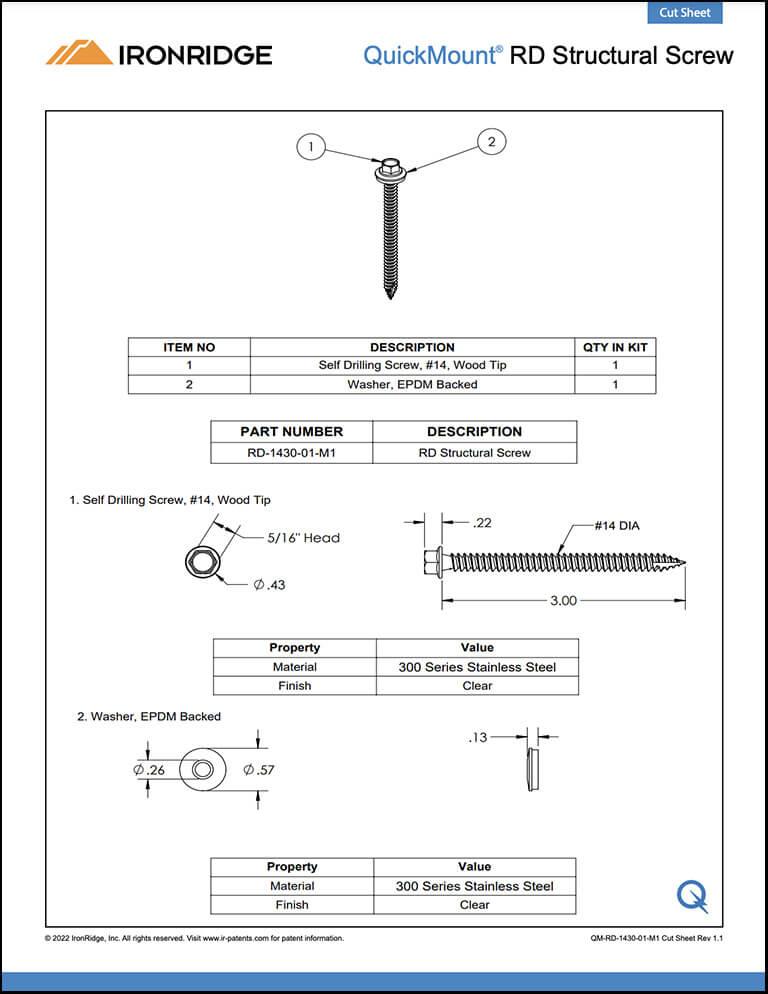

RD Structural Screws

Rafter & Deck Mounting Options

Mount HUG® to the roof rafters, the roof deck, or both with our custom-engineered RD (rafter-or-deck) Structural Screw. The RD Structural Screw anchors HUG® to the roof with an EPDM sealing washer, completing the stack of waterproofing barriers.

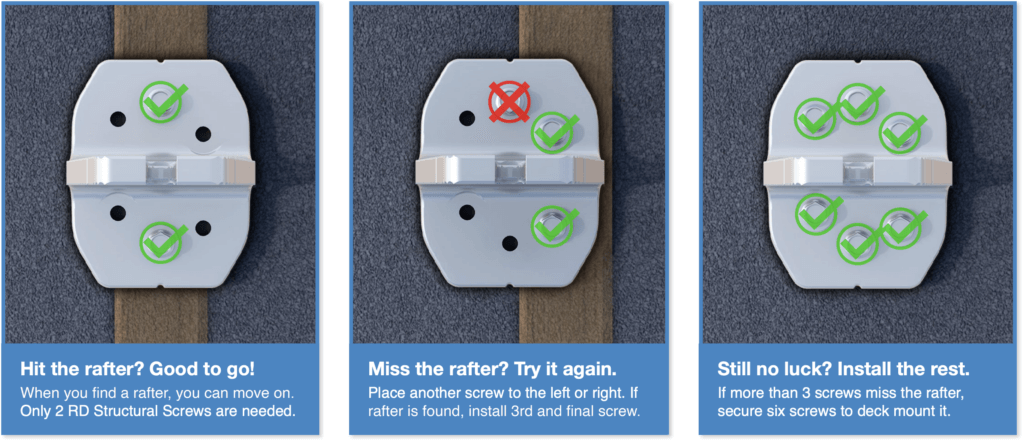

Adaptive, Rafter-Friendly Installation

UL 2703 CERTIFICATION

etl

All IronRidge® Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-Year Warranty

25yr-otrxwp8kbdjsdw4631geskiralvuj7m3q2d8uvywly

IronRidge® products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.
