L-Mount®

L-Mount®

The L-Mount attachment, featuring an open-slotted L-Foot, is designed for cost-effective, single-bolt installation onto existing composition (asphalt) shingle roofs. The patented Elevated Water Seal Technology® has been integrated into the open-slotted L-Foot and flashing for fast installation, to provide maximum waterproofing.

To maximize versatility, the attachment kit is available with a lag bolt or structural screw option—meaning it can work with all side-mounted racking in the market. Both hardware options come with an installed EPDM bonded washer to seal and prevent water entry.

The redesigned L-Foot can rotate 360 degrees for optimal adjustability and positioning of the rail, while the open slot allows the rail hardware to quickly drop-in. L-Mount also features a 9×12” aluminum flashing with alignment guides and rounded corners, to easily slide under shingles and speed up installation on the roof. The kit is available in both mill and black finishes.

QuickMount Q-Zap Technology

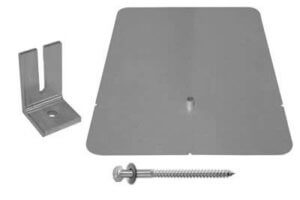

Open-Slotted L-Mount (Mill)

Features

Resources

UL2703 Certification

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-Year Warranty

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

Product Patents

uspto
