QuickMount Technologies

QuickMount components are designed on the principle of using state of the art technology to make roof-mounted solar easier to install, stronger and more reliable, and 100% waterproof.

QBlock Technology

Ensuring Long-Term Water Seal Integrity

QuickMount revolutionized rooftop solar mounting in 2006 when it introduced the Classic Composition Mount. The underlying technology, the patented QBlock Elevated Water Seal Technology®, has since been proven in millions of installations.

QBlock Innovation

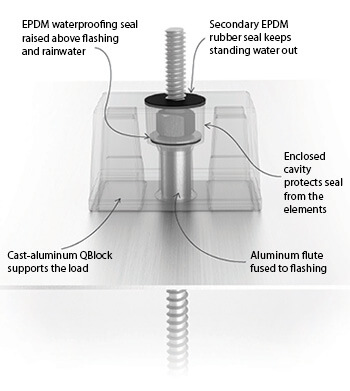

Other roof mounts seal the bolt holes in the flashing with a rubber seal mounted directly against the flashing at the water level. A leak is almost inevitable as the seal slowly deteriorates in the harsh roofing environment. QuickMount’s patented QBlock uses an aluminum flute to elevate the EPDM rubber seal above the flashing and out of harm’s way.

The cast-aluminum QBlock completely encloses the rubber seal, shielding the sealing area from the ravages of rain, ice and UV exposure, and minimizing stresses on the rubber seal caused by thermal- and wind-induced movement of the solar array. A secondary rubber seal provides a final measure of safety.

Technology Benefits

  • Preserves waterproofing for the life of the roof and solar array
  • Approved by leading roofing manufacturers, won’t void roofing warranties
  • ICC-ES certified (ICC-ESR-3744) for strength and waterproofing
  • Meets or exceeds roofing industry best practices
  • 100% IBC compliant

QBlock Products

QuickMount® Product Technology

QBlock for Tile Technology

Optimal Waterproofing

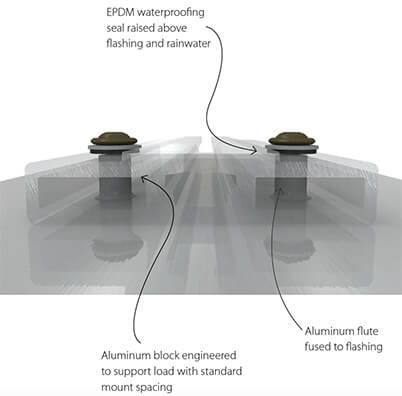

The QBlock® patented Elevated Water Seal Technology® offers optimal waterproofing for tile roofs. Fully engineered universal base mount provides clean, fast installation without messy tile grinding or cutting.

QBlock for Tile Innovation

Universal base mount with integral deck level flashing is fully adjustable, and can be oriented to the left or right for proper rafter location. The base mount also features an innovative track to position the post for optimal location under tile. Pre-formed flashing and Elevated Water Seal Technology® provides code-compliant deck level waterproofing.

QBlock for Tile Applications

Tile Replacement Mount with QBlock technology provides fast, easy and clean tile roof installations with no cutting or grinding of tiles.

QBlock for Tile Technology Benefits

  • Versatile: works with Flat, S and W shaped tiles and all standard rail-based racking systems
  • Universal base mount works with all three tile profile flashings
  • Enables fast, clean installation without cutting or grinding tiles
  • Double-flashed: flashed at both the deck and tile levels for code compliance
  • Meets or exceeds roofing industry best practices
  • 100% IBC compliant

QBlock for Tile Products

QuickMount® Product Technology

QBase Technology

A Superior Base-and-Post Mounting System

QuickMount developed QBase to provide a strong and versatile mounting solution for installations with high standoffs.

QBase Innovation

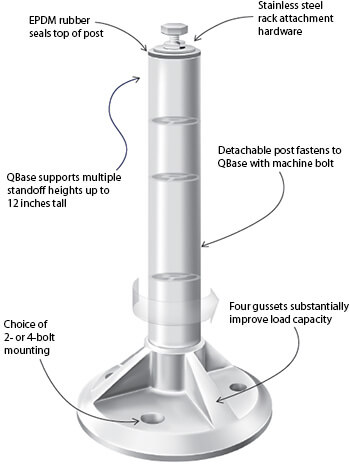

Typical base-and-post mounting systems lose structural integrity when standoffs exceed a few inches. The QBase has a super-strong cast aluminum foundation with four gussets to support standoff posts from 3.75 to 12 inches. The single base for all post heights reduces the number of components needed for a wide variety of roof types and installations.

QBase Applications

When standoffs get higher than several inches, such as with installations on curved tile and commercial built-up or insulated low slope roofs, QBase’s superior strength and proven waterproofing provide decades-long confidence.

QBase Technology Benefits

  • Supports standoffs up to 12 inches
  • Exceptional shear and pullout strength
  • Adaptable to asphalt shingle, tile, shake, slate, metal shingle, and low slope roofs
  • Meets or exceeds roofing industry best practices
  • 100% IBC compliant

QBase Products

QuickMount® Product Technology

QHook Technology

Optimizing the Tile Hook

Engineered for strength, QHook enables simple tile hook mounting on more tile roof jobs. Form-fitting flashing and a sliding base-hook interface allow fast, economical installation without penetrating or replacing tiles.

QHook Innovation

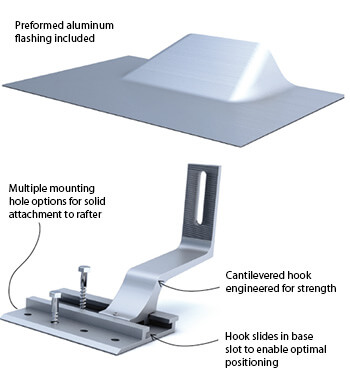

A unique sliding hook-and-base track enables several inches of side-to-side adjustment to position the hook to the optimal location between the tiles. The base has multiple sets of mounting holes for even more flexibility. Pre-formed flashing provides code-compliant deck-level waterproofing.

QHook Applications

QHook enables streamlined tile roof installations with no hole cutting, less dust, and fewer broken tiles.

QHook Technology Benefits

  • Significantly expands the opportunities to use tile hooks
  • Enables fast, cost-effective installation
  • Deck-level flashing provides code-required waterproofing and an attractive appearance
  • Meets or exceeds roofing industry best practices
  • 100% IBC compliant

QHook Products

QuickMount® Product Technology
