XR Rail® Family
|
XR Rails’ unique curved profile increases structural strength and spanning capability, meaning fewer roof penetrations and more cost-effective designs. |
Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Racking |
IronRidge |
|
BOSS® Bonded Structural Splice
|
The BOSS™ provides a strong, bonded connection for XR Rails. No assembly, tools, or hardware required. |
Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Racking |
IronRidge |
|
FlashVue®
|
Optimized flashing design features a large viewport, for easy alignment with the pilot hole. The GripCap also stays snug in place. |
Pitched Roof |
Attachment |
IronRidge |
|
FlashFoot2®
|
Flash and mount XR Rails on asphalt comp shingle roofs with superior waterproofing. The twist-on cap eases installation. |
Pitched Roof |
Attachment |
IronRidge |
|
L-Mount®
|
The L-Mount is designed for cost-effective, one-bolt installation onto existing composition/asphalt shingle roofs. |
Pitched Roof |
Attachment |
QuickMount® |
|
Lynx™ Metal Roof Attachment
|
Lynx™ Metal Roof Attachment Connect with ConfidenceQuickMount® has always been known for high-quality solar attachments. Now expanding that portfolio onto metal roofs, Lynx™ is a robust, non-penetrating clamp for attaching... |
Pitched Roof |
Attachment |
QuickMount® |
|
IronRidge® Slotted L-Foot
|
IronRidge® Slotted L-Foot Our original Slotted L-Feet are engineered for most roof mounting applications. Vertical slots allow for easily dropping in rails with pre-attached hardware and provide adjustability to account... |
Pitched Roof |
Attachment |
IronRidge |
|
QuickMount® Open-Slotted L-Foot
|
QuickMount® Open-Slotted L-Foot The QuickMount® Open-Slotted L-Foot is recommended for use when attaching an L-Foot to QuickMount® attachments.The alternative IronRidge® Slotted L-Foot, used across all other IronRidge solar roof attachments,... |
Pitched Roof |
Attachment |
QuickMount® |
|
UFO® & Stopper Sleeves
|
The Universal Fastening Object is a universal, single-piece mid clamp. When combined with a Stopper Sleeve, the UFO functions as an end clamp. |
Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Hardware |
IronRidge |
|
CAMO®
|
This tool-free, universal, invisible end clamp is designed to bond and secure while improving array aesthetics. It comes as one piece, fully assembled.
|
Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Hardware |
IronRidge |
|
JayBox™ Junction Box
|
JayBox™ Junction Box Protect the NestJayBox™ is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings.The... |
Ballasted, Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Accessory |
QuickMount® |
|
QBase® Composition Mount
|
The QBase® Composition Mount is a strong and cost-effective method for installing solar panels during the construction of new composition/asphalt shingle roof for either a new home or a roof replacement. |
Pitched Roof |
Attachment |
QuickMount® |
|
QBase® Low Slope Deck Mount
|
The QBase® Low Slope Mount is one of the strongest mechanically attached standard solar mounts available. The aluminum QBase® post has a 50 year life and is warranted to 20 years. The Low Slope Mount is available in 7", 9" and 12" heights. |
Flat Roof |
Attachment |
QuickMount® |
|
QBase® Metal, Shake & Slate Mount
|
The QBase® Metal, Shake & Slate Mount is a multi-purpose base-and-post style solar mounting system offering superior strength and waterproofing for metal shingle, shake, and slate shingle roofs. |
Pitched Roof |
Attachment |
QuickMount® |
|
QBase Universal Tile Mount
|
The QBase Universal Tile Mount uses the QBase foundation and two spun aluminum cone flashings for installing solar panels on tile roofs with superior strength and waterproofing. |
Pitched Roof |
Attachment |
QuickMount® |
|
Tile Replacement Mount
|
The Tile Replacement Mount provides a fast and easy way to install solar on tile roofs while protecting against water intrusion. |
Pitched Roof |
Attachment |
QuickMount® |
|
Tile Replacement Flashings
|
The QuickMountTile Replacement Flashing replaces a tile, so there’s no messy, time-consuming tile grinding or cutting required. Works with all standard curved and flat tile roofs, and all standard rail-based racking systems. |
Pitched Roof |
Attachment |
QuickMount® |
|
Classic Conduit Mount
|
The Classic Conduit Mount lifts electrical conduit off the roof to protect wiring from overheating. These mounts use our proprietary waterproofing technology to seal the roof penetrations. |
Pitched Roof |
Attachment |
QuickMount® |
|
Conduit Mount for Tile
|
Lifts electrical conduit off the roof to protect wiring from overheating and works with flat or curved tile and does not require tile cutting or grinding. |
Pitched Roof |
Attachment |
QuickMount® |
|
Conduit Penetration Flashing
|
Provides a quick, easy way to install a variety of conduit sizes through composition shingle roofs while protecting the penetration against water intrusion. |
Pitched Roof |
Attachment |
QuickMount® |
|
Tile Conduit Penetration Flashing
|
The QuickMount Tile Conduit Penetration Flashing provides a quick, easy way to install conduit through tile roofs while protecting against water intrusion with two seamless, all-aluminum spun cone flashings. |
Pitched Roof |
Attachment |
QuickMount® |
|
Quick Hook® for Side Mount Rails
|
Quick Hook is fast and simple to install. Two height options allow for use with a variety of flat and curved tiles for mounting PV on tile. |
Pitched Roof |
Attachment |
QuickMount® |
|
Shared Rail Composition Mount
|
The Shared Rail Composition Mount is designed to work with rail systems in shared-rail and modified shared-rail configurations. It features a 9 x 12-inch aluminum flashing with alignment guides and rounded corners to easily slide under shingles and speed installation on the roof. |
Pitched Roof |
Attachment |
QuickMount® |
|
Classic Composition Mount
|
The QuickMount® Classic Comp uses our patented QBlock Elevated Water Seal Technology® to ensure a long, watertight life on composition/asphalt shingle roofs. |
Pitched Roof |
Attachment |
QuickMount® |
|

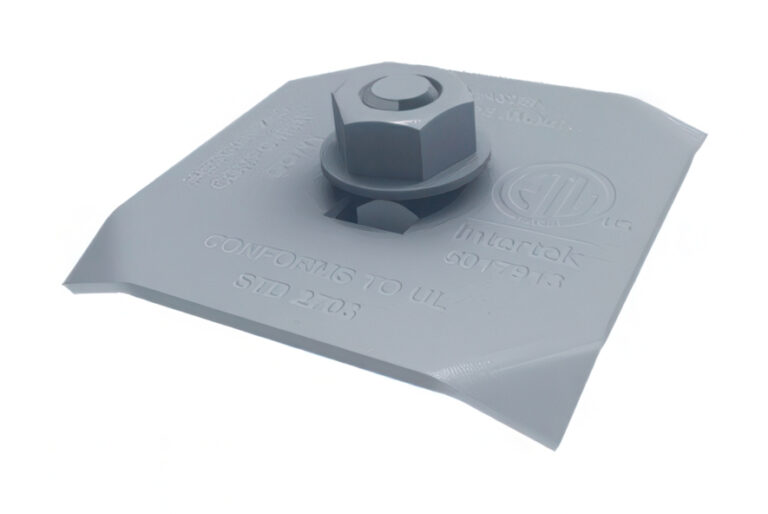

Accessory Frame Bracket
|
The Accessory Frame Bracket offers fast, on the ground installation for mounting module level electronics directly to the module frame. It works with rail-based racking systems, ballasted, and ground-mounted systems. |
Pitched Roof |
Accessory |
QuickMount® |
|
QBox® Junction Box
|
The QuickMount® QBox® is a flashed junction box with Elevated Water Seal Technology®, and provides a waterproof pass-through for conduit from the box enclosure to the attic on composition shingle roofs. |
Pitched Roof |
Attachment |
QuickMount® |
|
Compatible Roof Membranes
|
Formed membrane covers are matched to major roofing brands to ensure a tested, engineered system for TPO, PVC, and KEE roofs. No additional sealant necessary. |
Flat Roof, Tilt Mount |
Attachment |
IronRidge |
|
Diagonal Cross Brace
|
Optional assembly kit is for those rare installations that require extra support. Includes the brace, sleeves, and hardware. |
Ground Based |
Racking |
IronRidge |
|
E-Mount
|
E-Mount uses the patented QBlock Elevated Water Seal Technology® to provide superior waterproofing on composition/asphalt shingle roofs. |
Pitched Roof |
Attachment |
QuickMount® |
|
Conduit Mount
|
Elevates and securely fastens conduit to the roof deck. Supports ¾” or 1” EMT conduit and other equipment such as a junction box for a sleek, versatile solution. |
Pitched Roof |
Attachment |
IronRidge |
|
Knockout Tile
|
The single-lag design cuts the number of tile roof penetrations in half, and the fully-encased compression seal keeps the water down and out. |
Pitched Roof |
Attachment |
IronRidge |
|
All Tile Hook & Deck Flashing
|
The single-lag design cuts the number of tile roof penetrations in half, and the fully-encased compression seal keeps the water down and out. |
Pitched Roof |
Attachment |
IronRidge |
|
BX Chassis
|
BX Chassis is designed to clamp PV modules and secure them in place. The Chassis is available in two SKUs: 5 and 10 degree tilt configurations. |
Ballasted, Flat Roof |
Racking |
IronRidge |
|

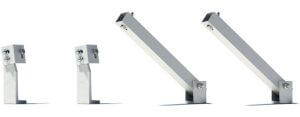

Fixed Tilt Legs
|
Tilt assembly to the desired angle, up to 30 degrees. Kits include South and North Tilt Leg and all hardware. |
Flat Roof, Tilt Mount |
Racking |
IronRidge |
|
Flat Roof Attachment
|
Combine a high-strength cast aluminum base with 16-point fastening pattern to enable the widest range of design options on low-sloped roofs. |
Flat Roof, Tilt Mount |
Attachment |
IronRidge |
|

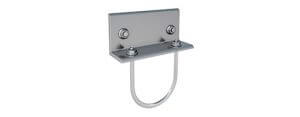

Rail Connector
|
Attaches and bonds horizontal cross pipes to XR1000 Rails. Available for both 2” and 3” sizes. |
Ground Based |
Racking |
IronRidge |
|
Top Cap
|
Available in sizes that fit either 2” or 3” steel pipe and mechanical tubing, the top cap supports cross pipes with U-bolt hardware.
|
Ground Based |
Racking |
IronRidge |
|
Classic Shake Mount
|
The QuickMount® Classic Shake Mount uses patented QBlock Elevated Water Seal Technology® to form the easiest, fastest, most universally code-compliant and watertight mount available for solar panel installation on cedar shake roofs. |
Pitched Roof |
Attachment |
QuickMount® |
|
Accessories
|
Provide a finished look and support electrical wires. Constructed from UV-stabilized polymers for long-lasting performance: End Caps & Wire Clips. |
Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Accessory |
IronRidge |
|
Hardware
|
All hardware is designed for single-tool installs, low profiles, and in support of our UL 2703 listings: Grounding Lugs, T-bolts, Square-bolts and MI kits. |
Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Hardware |
IronRidge |
