Flush Mount Features

XR Rails

XR Rails are the backbone of the solar array. Their unique curved profile increases structural strength and spanning capability, allowing for fewer roof penetrations and more cost-effective system designs.

XR Rails are available in three targeted sizes: XR10, XR100 & XR1000. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match.

new-rail-family-00ede62e131392b3bc5d1e2e63373bea

Watch the Video

screen-shot-2017-10-20-at-10.49.42-am

Read the Tech Brief

Find out the spanning capabilities in different wind and snow conditions for each of our new rails.
Download

Get a Demo Kit

Our free demo kit includes XR100 Rail, a UFO and Stopper Sleeve, a FlashFoot2, a T-bolt, a Square-bolt and a Grounding Lug.

Universal Fastening Object

The UFO (Universal Fastening Object) is a one-size-fits-all, single-piece fastener that quickly and securely bonds solar modules to XR Rails. It comes lubricated and assembled, with a sleek, low-profile design. Simply snapping on a Stopper Sleeve transforms the UFO into an end clamp.

The UFO is a part of the IronRidge Integrated Grounding System, which is listed to UL 2703 and eliminates the need for separate grounding hardware.

ufos_double-22f0110920194f97d4956c6d3a486e05

Watch the Video

Read the Tech Brief

The UFO family of components delivers integrated grounding and makes installation a snap.
Download

Order a free UFO Sample

It’s not a clamp. We’ll ship you a free sample so you can experience the next evolution of solar fastener firsthand.

FlashFoot2

FlashFoot2 is an all-in-one roof attachment for mounting XR Rails to composition shingle roofs. Its integrated design incorporates both structural and waterproofing features into a single assembly. This eliminates the need for separate standoffs, flashings, and L-feet, and reduces the overall number of installation procedures.

slide3ff2_home_banner

Watch the Video

Read the Tech Brief

The UFO family of components delivers integrated grounding and makes installation a snap.
Download

Get a Demo Kit

Our free demo kit includes XR100 Rail, a UFO and Stopper Sleeve, a FlashFoot2, a T-bolt, a Square-bolt and a Grounding Lug.

Use our Design Assistant tool to layout a project, create a bill of materials, and obtain a quote from our distributors.

Register for a webinar or watch videos about our Flush Mount System.

FAQs, documentation and certifications for the Flush Mount System.

 Additional Parts

slotted_l-foot-d4cd53f27faf4b644e20c0b54e055c26

Slotted L-Foot

Drop-in slot design for rapid rail attachment.

bonding_hardware_2-e623607337ac9cca3660225c0b1a817a

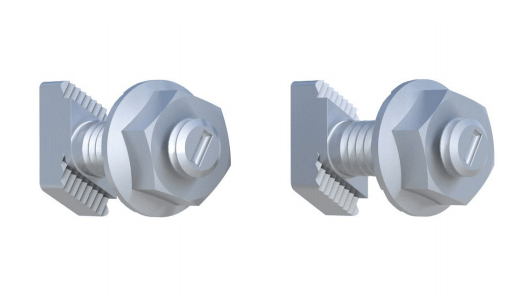

Bonding Hardware

Choose either T-Bolts or Square-Bolts to attach the FlashFoot2 or Slotted L-Foot.

grounding_lug-e3cc84cc931f2328cd022849013b2850

Grounding Lug

Low-profile Grounding Lug mounts in any direction and connects array to equipment ground.

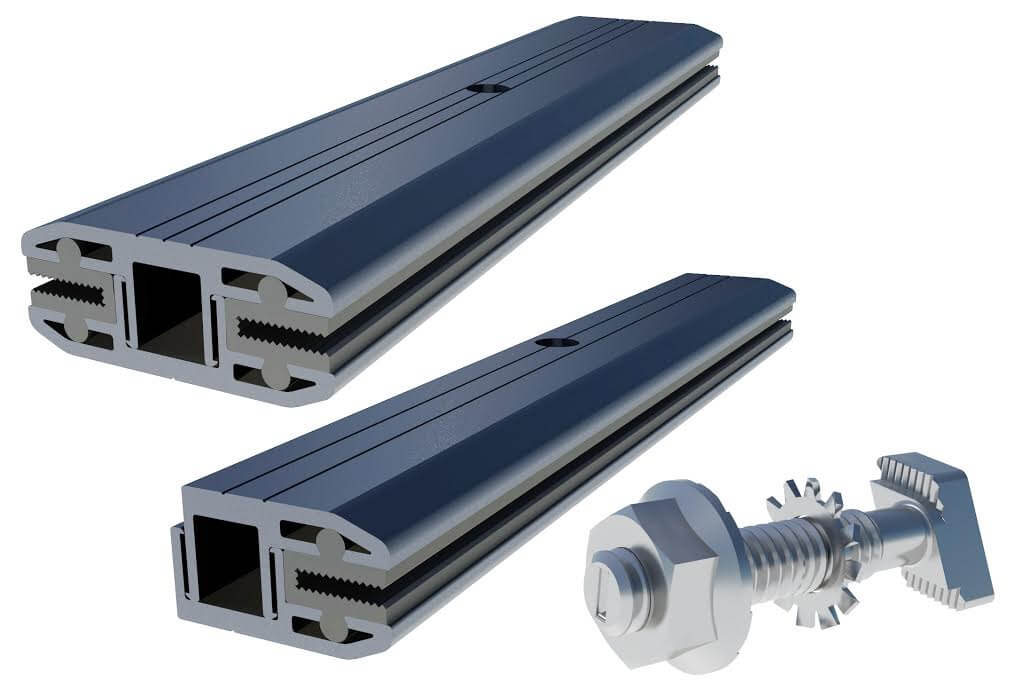

Frameless Clamps

Frameless Clamps

Compatible with both Sunpreme and Stion frameless modules.

screen-shot-2017-12-12-at-5.20.50-pm

Microinverter Kits

Mount microinverters and power optimizers to XR Rails.

end_cap_wire_clip-ceeecaf026f3d62d7af8701e36c55a79

End Caps & Wire Clips

Provide a finished look for rails and organize wiring along the rails.
