FlashVue

Moving flashing forward.

We set out to design a flashing that checked all the boxes: fully waterproof, fast and easy to install correctly, economical, and strong enough to handle every environmental condition.

FlashVue™ does it all. The optimized flashing design features a large viewport, for easy alignment with the pilot hole. And the GripCap and GripCap+ sit snugly in place, so the lag can be driven single-handedly.

FlashVue - Look Into It

See Through to a Whole New Installation Experience

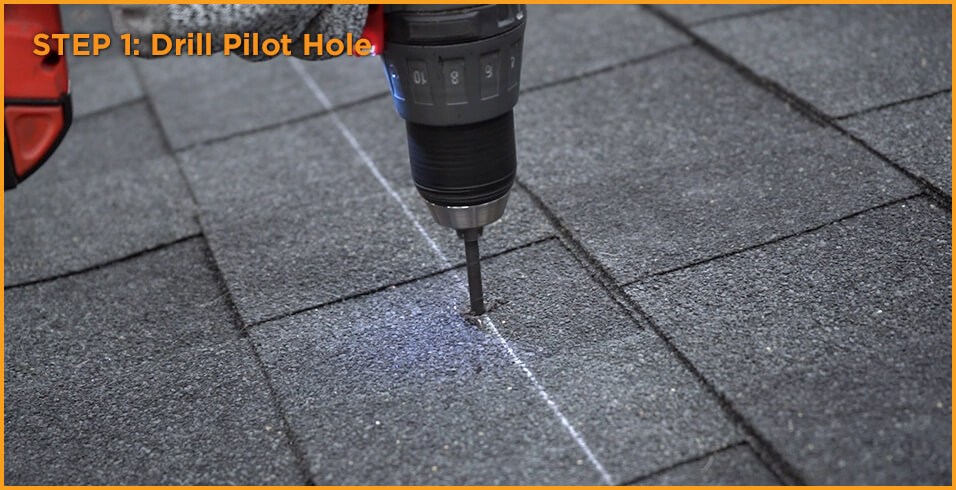

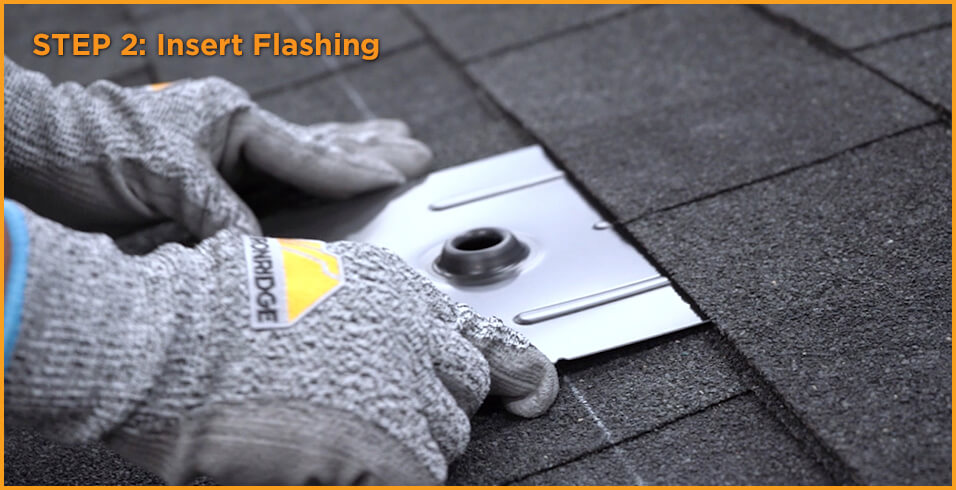

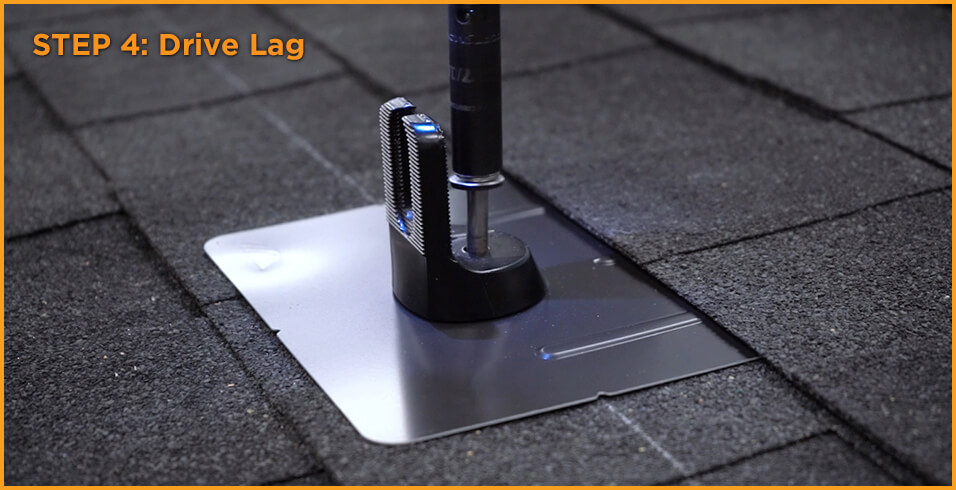

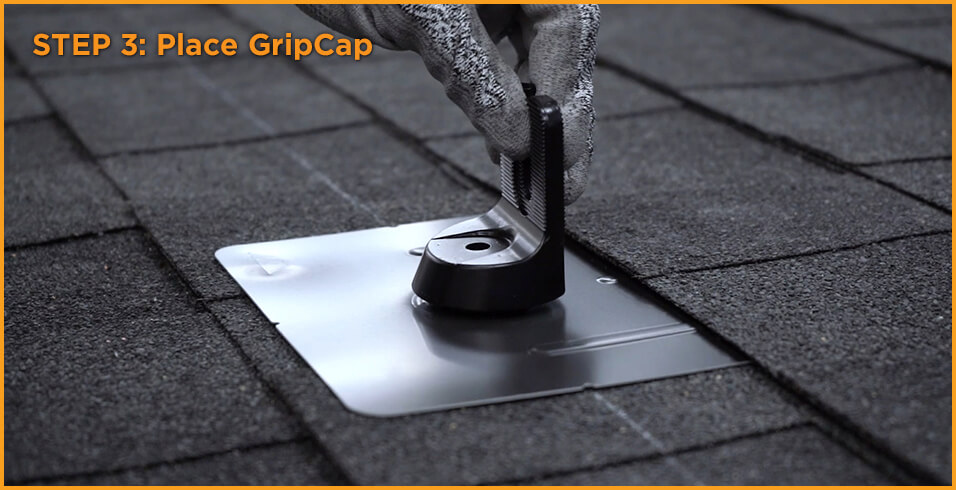

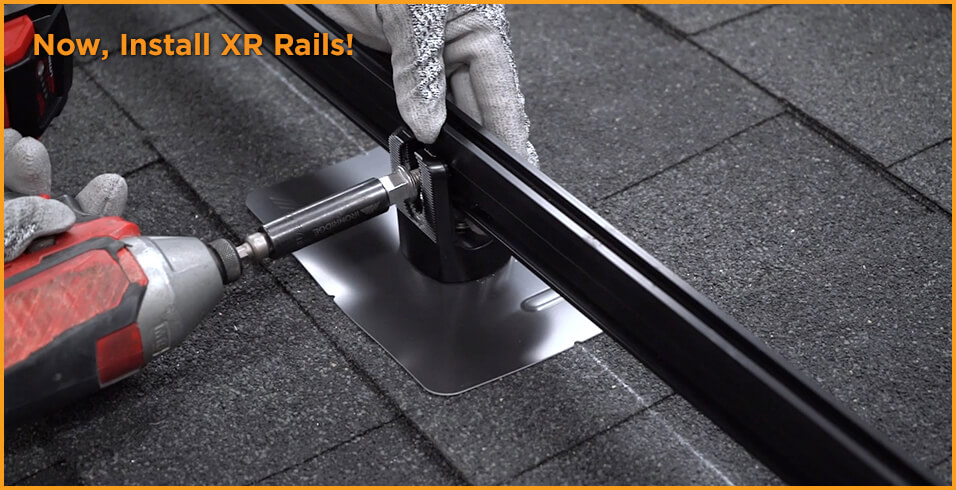

Slide Drill Pilot Hole Slide Insert Flashing Slide Pilot Holes Are Highly Visible Slide Place GripCap Slide Drive Lag Slide Installed FlashVue Slide GripCap & GripCap+ Slide Now, Install XR Rails!

Features & Benefits

Right-Sized Flashing
8×12” flashing footprint fits between and avoids most roofing nails.

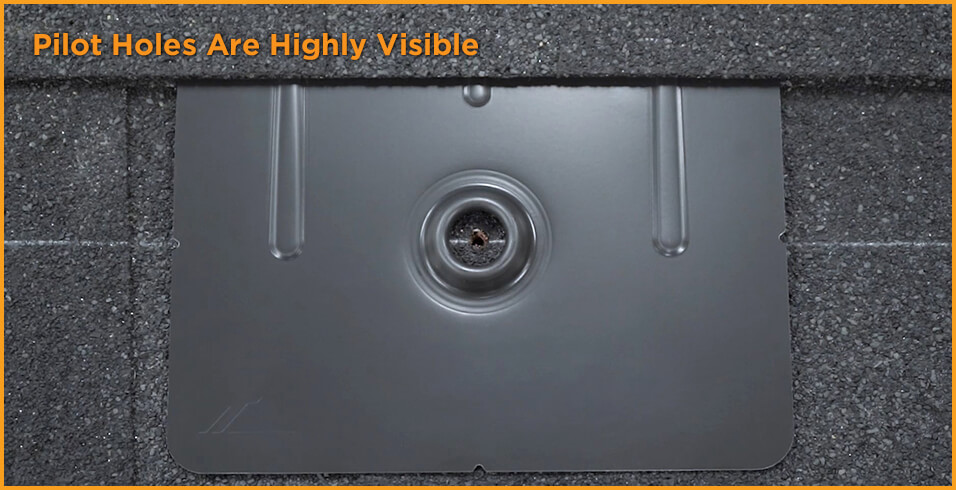

Large Viewport
0.75” opening in flashing enables easy alignment with the pilot hole.

Elevated Dock
Raised viewport platform diverts water and supports GripCap™.

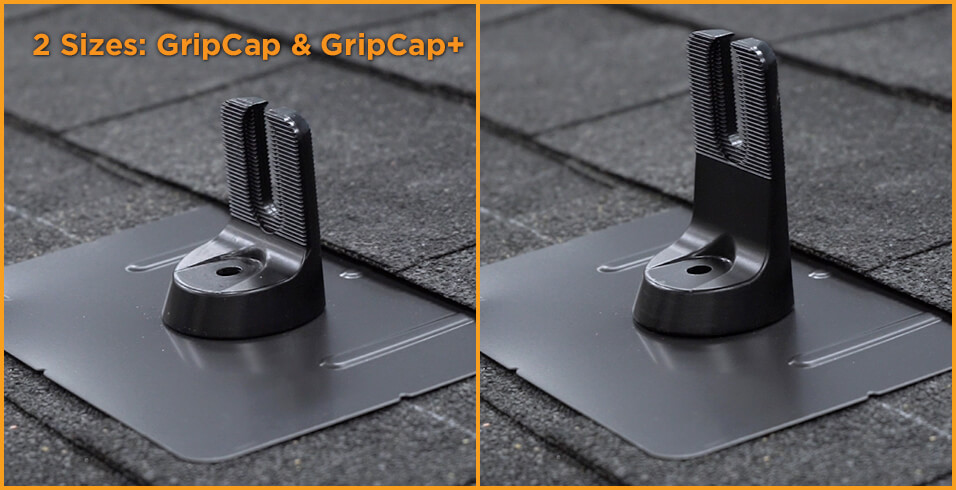

Friction-Fit GripCap™
Unlike L-Feet, it stays in place so only one hand is needed to fasten.

360° Placement
GripCap installs in NS or EW orientation, or whatever is needed.

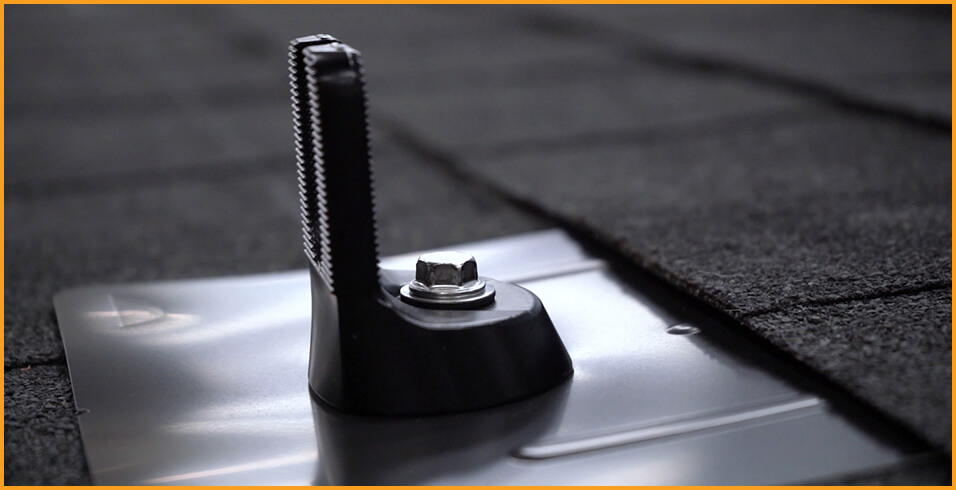

Sealing 7/16″ Lag
Bolt and EPDM washer combo uses same socket size as rest of system.

FlashVue Documentation

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

U.S. PATENTS

uspto

FlashVue
U.S. Patent Pending
