Fixed Tilt Legs

Broad Tilt Range = Adaptability

The IronRidge Fixed Tilt Leg Kits consist of a North & South Tilt Leg, plus hardware for attaching to the rails. They come in several different heights to support a wide range of mounting angles: 4-30 degrees in Portrait Orientation, and 6-30 degrees in landscape orientation.

The South Tilt Leg comes with angle indicator markings that simplify installation, and the North Tilt Leg has a pivot bracket for full adjustability. Constructed of aluminum and stainless steel components to ensure complete corrosion resistance.

tilt_legs

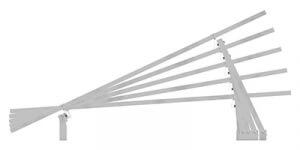

NORTH LEG OPTIONS

tilt_leg_options

The Tilt Leg Kits’ North Leg comes in five different lengths: 10″, 15″, 20″, 25″ and 30″.

LOW DISTRIBUTED WEIGHT

distr_weight

Some roofs can’t hold a lot of weight. IronRidge flat roof arrays run 1.5 to 3 PSF.

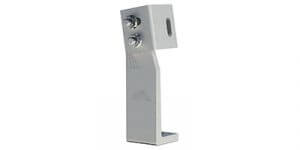

SOUTH LEG ANGLE MARKINGS

south_tilt_leg

The South Tilt Legs come with markings on the side to easily adjust to the right angle.

Tilt Leg Documentation

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.
