E-Mount

E-Mount uses the patented QBlock Elevated Water Seal Technology® to provide superior waterproofing on composition/asphalt shingle roofs.

It is backed by solid engineering and certified for strength and waterproofing. All stainless steel hardware included for fast, single lag-bolt installation. Backed by a 25-year Limited Product Warranty. Available in aluminum mill and black (custom) finishes.

Features

  • Patented Elevated Water Seal Technology®
  • Stainless steel hardware (included)
  • All-aluminum 9″ x 12″ flashing with alignment guides
  • Rounded corners to easily slide under shingles
  • Won’t void roof manufacturer’s warranty
  • 25-year warranty
  • Meets or exceeds roofing industry best practices
  • 2554 lbs. average ultimate pullout (Douglas fir)
  • 2203 lbs. average ultimate shear
  • Fast, simple one bolt installation
  • No shingle cutting
  • 100% IBC compliant

The 9 x 12-inch E-Mount flashing is designed to fit within a standard 5 to 5.625″ course and the exposed course should be no greater than 5.75″. If the exposure is greater than this, use the Classic Shake Mount as an alternative. There’s no shingle cutting and no shingle distortion caused by trying to force a fit.

Resources

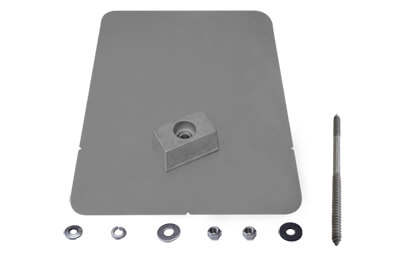

E-Mount Kit
Included in kitCast aluminum mounting block (2-1/4" L x 1-1/4" W x 1-1/4" H) bonded with .04" thick, 9" x 12" aluminum flashing
Hanger bolt, 5/16" x 6" (1-1/4" machine, 1-3/4" shank, 3" lag)
Stainless steel and EPDM rubber sealing washer, 3/4" x 5/16"
Two 5/16" hex nuts
EPDM sealing washer with 60 Durometer hardness
Stainless steel flat washer, 1" x 5/16"
Flashing size9" x 12"
Pullout/shear2554 lbs. average ultimate pullout (Douglas fir); 2203 lbs. average ultimate shear
Tools needed for installationTape measure
Roofer's bar/shingle ripper
Chalk line
Stud finder
Caulking gun
Sealant compatible with roofing materials
Drill with 7/32" long-style bit
Drill or impact gun with 1/2" deep socket
Applicable roof typesStandard and high-definition composition/asphalt and wood shingle roofs with 5" to 5-5/8" courses
Available finishAluminum mill
Black

Installing the E-Mount

The QBlock Elevated Water Seal Technology®

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

US PATENTS

uspto

E-Mount
U.S. Patent Numbers: US 7762027, US 7895808, & US 7905064
