Classic Shake Mount

The QuickMount® Classic Shake Mount uses patented QBlock Elevated Water Seal Technology® to form the easiest, fastest, most universally code-compliant and watertight mount available for solar panel installation on cedar shake roofs. The oversized 18 x 18-inch flashing accommodates the large exposure of shake roofing.

Available in aluminum mill and bronze (custom) anodized finishes.

For installing solar concurrently with the construction of a new shake roof, use our QBase Metal, Shake & Slate Mount.

Features

  • Stainless steel hardware (included)
  • 25-year warranty
  • Meets or exceeds roofing industry best practices
  • 2554 lbs. average ultimate pullout (Douglas fir)
  • 2203 lbs. average ultimate shear
  • One bolt installation
  • No shingle cutting
  • 100% IBC compliant

Designed to be adaptable, the 18 x 18-inch flashing installs on East Coast style shake roofs (7.5-inch exposure over skip sheeting) and West Coast (10-inch exposure over solid sheeting) alike. The shake roof flashing slides quickly into place with no need to modify the shake to force a fit. Just a simple, watertight seal every time.

Classic Shake Mounts are constructed of corrosion resistant material, including .050 aluminum flashing and stainless steel hardware, which last at least three times longer than galvanized parts. Our Classic Shake Mounts bolt to any racking system with an L-foot interface, and integrate directly with Prosolar and Unistrut systems, as well.

PV, Solar Water Heating, and More

The Classic Shake Mount is the logical choice not only for solar PV installation, but also for rooftop solar water heating systems. In fact, whatever you need to fasten to a shake roof – HVAC equipment, antennas, satellite dishes – use it to secure and protect every roof installation you put your name on.

Resources

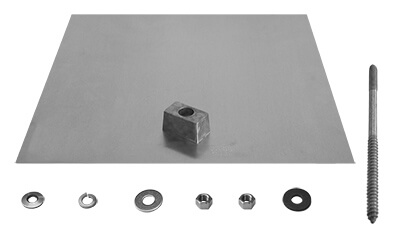

Classic Shake Mount Kit
Included in kitCast aluminum mounting block (2-1/4" L x 1-1/4" W x 1-1/4" H) bonded with .05" thick, 18" x 18" aluminum flashing
Hanger bolt, 5/16" x 6"(1-1/4" machine, 1-3/4" shank, 3" lag)
EPDM-bonded stainless steel sealing washer, 3/4" x 5/16"
Two stainless steel hex nuts, 5/16"
EPDM sealing washer with 60 Durometer hardness
Stainless steel flat washer, 1" x 5/16"
Flashing size18" x 18"
Pullout/shear2554 lbs. average ultimate pullout (Douglas fir); 2203 lbs. average ultimate shear
Tools needed for installationTape measure
Roofer's bar/shingle ripper
Chalk line
Stud finder
Caulking gun
Sealant compatible with roofing materials
Drill with 1/4" bit
Drill or impact gun with 1/2" deep socket
Applicable roof typesStandard wood shake in west coast (10" exposure over solid sheeting) and east coast (7-1/2" exposure over skip sheeting) configurations
Available finishesAluminum mill
Bronze anodized

Installing the Classic Shake Mount

The QBlock Elevated Water Seal Technology®

UL 2703 CERTIFICATION

etl

All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

25yr

IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.

US PATENTS

uspto

Classic Shake Mount
U.S. Patent Numbers: US 7762027, US 7895808, & US 7905064
