Classic Composition Mount
The QuickMount® Classic Comp, the industry’s best-selling solar panel mount for rooftop solar installations of PV and solar water heating systems, uses our patented QBlock Elevated Water Seal Technology® to ensure a long, watertight life on composition/asphalt shingle roofs.
Available in the aluminum mill and bronze anodized finishes.
Features
- Stainless steel hardware (included)
- 25-year warranty
- Works with all leading racks
- Approved for use by leading roof manufacturers
- Meets or exceeds roofing industry best practices
- 2554 lbs. average ultimate pullout (Douglas fir)
- 2203 lbs. average ultimate shear
- One bolt installation
- No shingle cutting
- 100% IBC compliant
The 12 x 12-inch Classic Composition Mount flashing is designed to fit within a standard 5 to 5.625″ course and the exposed course should be no greater than 5.75″. If the exposure is greater than this, use the Classic Shake Mount as an alternative. There’s no shingle cutting and no shingle distortion caused by trying to force a fit.
Resources
Documents
Specs
Videos
Documents
Specs
| Ninja Column 1 | Ninja Column 2 |
|---|---|

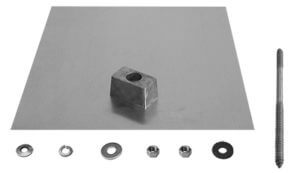

| Included in kit | Cast aluminum mounting block (2-1/4″ L x 1-1/4″ W x 1-1/4″ H) bonded with .05″ thick, 12″ x 12″ aluminum flashing Hanger bolt, 5/16″ x 6″ (1-1/4″ machine, 1-3/4″ shank, 3″ lag) Stainless steel and EPDM rubber sealing washer, 3/4″ x 5/16″ Two 5/16″ hex nuts EPDM sealing washer with 60 Durometer hardness Stainless steel flat washer, 1″ x 5/16″ |
| Flashing size | 12″ x 12″ |
| Pullout/shear | 2554 lbs. average ultimate pullout (Douglas fir); 2203 lbs. average ultimate shear |
| Tools needed for installation | Tape measure Roofer’s bar/shingle ripper Chalk line Stud finder Caulking gun Sealant compatible with roofing materials Drill with 7/32″ long-style bit Drill or impact gun with 1/2″ deep socket |
| Applicable roof types | Standard and high-definition composition/asphalt and wood shingle roofs with 5″ to 5-5/8″ courses |
| Available finishes | Aluminum mill Bronze anodized |
Videos
The QBlock Elevated Water Seal Technology®
Real-Time Installation (60 Seconds)
UL2703 Certification
All IronRidge Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.
25-Year Warranty
IronRidge products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.
US Patents
Classic Comp Mount U.S. Patent Numbers: US 7762027, US 7895808, & US 7905064
