Classic Shake Mount

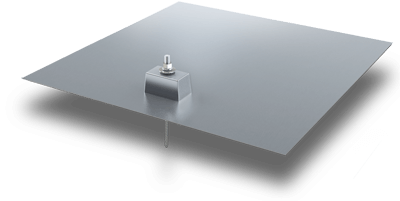

The QuickMount® Classic Shake Mount uses patented QBlock® Elevated Water Seal Technology® to form the easiest, fastest, most universally code-compliant and watertight mount available for solar panel installation on cedar shake roofs. The oversized 18 x 18-inch flashing accommodates the large exposure of shake roofing.
Available in aluminum mill and bronze (custom) anodized finishes.
For installing solar concurrently with the construction of a new shake roof, use our QBase® Metal, Shake & Slate Mount.
Features
- Stainless steel hardware (included)
- 25-year warranty
- Meets or exceeds roofing industry best practices
- 2554 lbs. average ultimate pullout (Douglas fir)
- 2203 lbs. average ultimate shear
- One bolt installation
- No shingle cutting
- 100% IBC compliant
Designed to be adaptable, the 18 x 18-inch flashing installs on East Coast style shake roofs (7.5-inch exposure over skip sheeting) and West Coast (10-inch exposure over solid sheeting) alike. The shake roof flashing slides quickly into place with no need to modify the shake to force a fit. Just a simple, watertight seal every time.
Classic Shake Mounts are constructed of corrosion resistant material, including .050 aluminum flashing and stainless steel hardware, which last at least three times longer than galvanized parts. Our Classic Shake Mounts bolt to any racking system with an L-foot interface, and integrate directly with Prosolar and Unistrut systems, as well.
PV, Solar Water Heating, and More
The Classic Shake Mount is the logical choice not only for solar PV installation, but also for rooftop solar water heating systems. In fact, whatever you need to fasten to a shake roof – HVAC equipment, antennas, satellite dishes – use it to secure and protect every roof installation you put your name on.
Resources
| Ninja Column 1 | Ninja Column 2 |
|---|---|

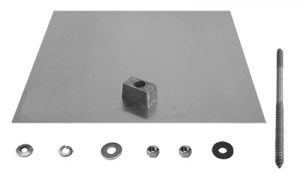

| Included in kit | Cast aluminum mounting block (2-1/4″ L x 1-1/4″ W x 1-1/4″ H) bonded with .05″ thick, 18″ x 18″ aluminum flashing Hanger bolt, 5/16″ x 6″(1-1/4″ machine, 1-3/4″ shank, 3″ lag) EPDM-bonded stainless steel sealing washer, 3/4″ x 5/16″ Two stainless steel hex nuts, 5/16″ EPDM sealing washer with 60 Durometer hardness Stainless steel flat washer, 1″ x 5/16″ |
| Flashing size | 18″ x 18″ |
| Pullout/shear | 2554 lbs. average ultimate pullout (Douglas fir); 2203 lbs. average ultimate shear |
| Tools needed for installation | Tape measure Roofer’s bar/shingle ripper Chalk line Stud finder Caulking gun Sealant compatible with roofing materials Drill with 1/4″ bit Drill or impact gun with 1/2″ deep socket |
| Applicable roof types | Standard wood shake in west coast (10″ exposure over solid sheeting) and east coast (7-1/2″ exposure over skip sheeting) configurations |
| Available finishes | Aluminum mill Bronze anodized |
Installing the Classic Shake Mount
The QBlock Elevated Water Seal Technology®
UL 2703 Certification
All IronRidge® Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.
25-Year Warranty
IronRidge® products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.
